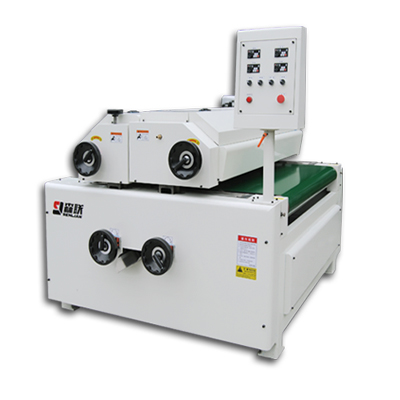

Mechanical Putty Filling Roller Coating Machine

Putty filling machine
function: it applies the single rubber roller and stainless steel roller to cover the liquid putty paint on board circularly which without any waste and environmentally friendly. Then it uses the heavy stainless steel roller to press the putty into the pores in board closed and evenly, this process will make a much better adhesion for the primer later.
• application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.
• application board:
solid wood board, ply, mdf, calcium silicate board, cement fiber board, etc.
• application paint:
putty paint.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-25mmin
paint pump 0.6mpa, 10l,
stainless steel roller φ200mm
rubber roller epdm, φ205mm, h45 degrees
full power 8.25kw 380v
estimated weight 1650kg1860kg2350kg
overall dimensions 1700*1700*1600mm
1700*1900*1600mm
1700*2300*1600mm
main parts
electric motor bmemb
frmain partsequency converter shihlin
main bearing nsk from japan
conveyor ammerraal from holland
paint pump vacuum diaphragm pump
electrical appliance chint
control system intelligent control system, lcd screen
optional rollers for different process epdm roller, polyurethane rubber roller, silicone rubber roller, laser rubber roller, sponge rubber roller, corrugated roller
