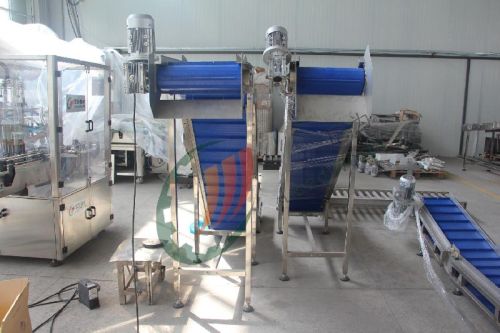

PVC Belt Conveyor

Far-famed for the outstanding range of PVC Belt Conveyor; we are a leading name in this trade. In our well-structured warehouse, we store the entire lot in a secured manner under the strict supervision of our expert warehouse personnel. Moreover, our facility is installed with all required amenities needed for safe storage.

Conveyor body part :

• Main body side chain plate - Plate thickness - 2.0mm Material - SUS304. Sizes can be adjusted according to request.
• Riding wheel - Material Nylon processing molding, diameter is based on the actual load, cooperate with
• the plus or minus tolerance.
• Bun foot - Nylon injection molding with stainless steel adjusting screw M16.
• Guardrail - Part adopts big Aluminum track Cooperate with wear-resisting sheet.
• Connecting plate - Plate width is 3.0mm using stainless steel bending forming
• Accessories - Mounted Bearing and using SUS304 screws type etc.

Conveying carrier part :

• Belt length - According to the effective length*width (mm). Sizes are depended on customer request.
• Belt Flange - Apron edge with baffle and height can be made by their actual size.
• Material - PVC and PU
• Color:White, Blue and Green.

Power system :

• Gear motor - Worm gear and worm gear motor, Protection class IP55, Power P=1.5KW/0.75KW
• Power supply - Single Phase 230V (50-60Hz)
• Speed - V=0—25 Meter/Min
• Speed choice:Denmark Danfoss inverter frequency control motor speed.

Control Segment :

• Electric cabinet material - 1.5mm SUS304 Stainless steel plate bending welding forming.
• Electronic components - Disconnector, AC contactor, button switched.
• Brand - Schneider
