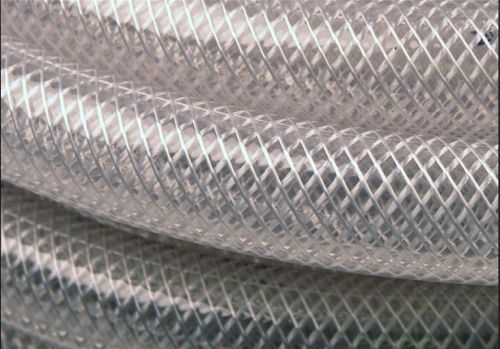

PVC Braided Hose

We are offering pvc braided hose.
keywords: pvc fiber reinforced hose,pvc braided hose,pvc hose
applications:the product is used for conveying water,oil,gas under normal working condition in the factory,farm,ship,building and family.the hose used for foodstuffs is made of special materials.
characteristics:
it is light,flexible,durable,non-toxic without odor,anti-erosion and adaptable to high pressure condition.
working temperature: -5-65 degrees centigrade
metric measurement w.p. b.p. weight length measure d*h
i.d. o.d. at 23degrees centigrade
mm mm bar bar kg/roll m/roll mm*mm
5 9 9 30 10 178 440*130
6 10 8 27 10 149 440*140
6 11 10 30 10 112 440*140
6 12 15 40 10 88 440*140
8 12 9 24 10 119 420*160
8 13 10 30 10 91 420*160
8 14 12 32 10 72 450*160
9 13 7 27 10 108 450*160
9 14 8 30 10 83 450*160
10 14 7 24 10 100 450*160
10 15 8 25 10 76 450*160
10 16 10 30 10 61 450*160
12 16 7 20 20 169 560*180
12 17 9 21 20 130 560*180
12 18 10 27 20 105 560*180
13 17 5 15 20 158 580*180
13 18 6 18 20 122 580*180
13 19 8 24 20 99 580*180
14 19 6 18 20 115 580*190
14 20 7 21 20 93 580*190
15 19 6 18 20 125 580*220
15 20 7 20 20 108 580*220
15 21 8 24 20 83 580*220
16 20 6 16 20 132 580*220
16 21 7 20 20 103 580*220
16 22 8 24 20 88 580*220
18 24 6 18 20 75 580*220
19 23 5 15 20 113 580*220
19 24 6 18 20 88 580*220
19 25 7 21 20 72 580*220
19 26 8 24 20 60 580*220
20 25 5 15 20 84 580*220
20 26 6 18 20 68 580*220
20 27 7 21 20 57 580*220
22 30 7 21 20 47 580*220
25 30 5 15 20 69 640*230
25 31 6 18 20 56 640*230
25 32 6 18 20 47 640*230
32 39 4 12 30 58 770*240
32 40 5 15 30 49 770*240
32 41 6 18 30 43 770*240
38 45 4 12 30 49 770*240
38 46 5 15 30 42 770*240
38 47 5 15 30 37 770*240
45 55 5 15 50 47 900*240
50 58 4 12 50 55 980*240
50 59 4 12 50 48 980*240
50 60 4 12 50 43 980*240
50 62 5 15 50 36 980*240
64 78 4 12 50 23 1100*230
