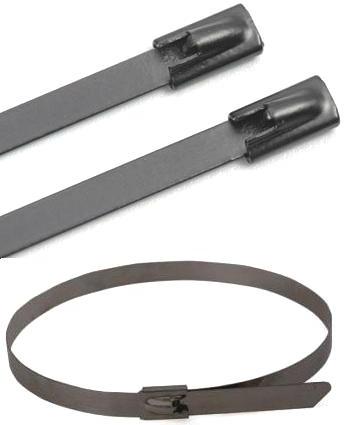

PVC Coated Stainless Steel Cable Ties

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

PVC Coated Stainless Steel Cable Ties are Suitable for all types of cable installation, particularly for offshore units and other hostile environments. It is smooth on both sides and has a unique ball locking system design making it easy to fasten & secure items in place. The Coated version of these ties offers edge protection & prevent corrosion between metals.

View More Details

Send Enquiry

Specifications

Loop Tensile Strength	4.6 mm width 450 N (100lbs.)
	7.9mm width 1110 N (250lbs.)
	12.0 mm width 3000 N (675lbs)
Operating Temperature Range	-80^oC to +500^oC (Uncoated)
Operating Temperature Range	-30^oC to +150^oC (Coated)
Surface Finish	Uncoated Metallic and Coated Black
Coating	Epoxy and Pure Polyester
Flammability Rating	Fire Proof and Halogen Free

Technical Specifications

Part No.	Width		Length	Max. Bundle Dia
Part No.	mm	Inch	mm	mm
RCT 110C	4.6	0.18"	100	20
RCT 115C	4.6	0.18"	150	35
RCT 120C	4.6	0.18"	200	50
RCT 126C	4.6	0.18"	250	75
RCT 130C	4.6	0.18"	300	90
RCT 136C	4.6	0.18"	360	100
RCT 145C	4.6	0.18"	450	120
RCT 152C	4.6	0.18"	520	150
RCT 168C	4.6	0.18"	680	200
RCT 184C	4.6	0.18"	840	250
RCT 100C	4.6	0.18"	1000	300
RCT 210C	7.9	0.31"	100	20
RCT 215C	7.9	0.31"	150	35
RCT 220C	7.9	0.31"	200	50
RCT 225C	7.9	0.31"	250	75
RCT 230C	7.9	0.31"	300	90
RCT 236C	7.9	0.31"	360	100
RCT 245C	7.9	0.31"	450	120
RCT 252C	7.9	0.31"	520	150
RCT 268C	7.9	0.31"	680	200
RCT 284C	7.9	0.31"	840	250
RCT 200C	7.9	0.31"	1000	300
RCT 310C	12.00	0.47”	100	20
RCT 315C	12.00	0.47”	150	35
RCT 320C	12.00	0.47”	200	50
RCT 326C	12.00	0.47”	260	75
RCT 330C	12.00	0.47”	300	90
RCT 336C	12.00	0.47”	360	100
RCT 345C	12.00	0.47”	450	120
RCT 352C	12.00	0.47”	520	150
RCT 368C	12.00	0.47”	680	200
RCT 384C	12.00	0.47”	840	250
RCT 300C	12.00	0.47”	1000	300
