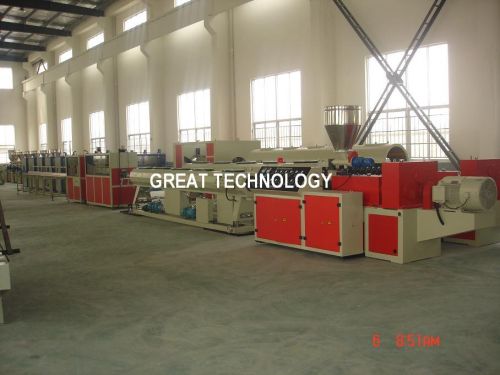

PVC Drainage Pipe Extruder Machine

we are offering 16mm-630mm PVC drainage pipe extrudermaking machines.
Machines name: 16mm-630mm PVC drainage pipe extrudermaking machines
Feature:
1. With the standards of CE and ISO9001-2000;
2. Can offer PLC (controlled by computer) for double screw;
3. Material of screw and barrel: 38CrMoALA high quality alloy steel; Nitriding treatment; Hardness≥850HV;Nitriding depth: 0.4-0.7mm;
4. Electric appliance control cabinet: Main transducer and feeding transducer made by Taiwan DeltaABB Company. Contact device, Circuit breaker made by Siemens Company;
5. We can produce the parts as your different requirements;
This series extruders with different screws, dies and other auxiliaries can directly convert thermoplastic expecially PVC powders into pipe, sheet, film, and profile; also it can modify and granulate.
Technical Parameter (FYI):
Model number Screw diameter (mm) Rotational speed of screw (rpm) Effective work length (mm) Main motor power (kw) Heating power of Barrel (kw) Production capacity (kgh) Central height of machine (mm) Net weight Overall size (mm)
SJSZ45 4590 1-45 1070 15 9.6 70 1000 2800 3300*1200*2000
SJSZ51 51105 1-45.5 1100 22 11.5 80 1000 3000 3360*1290*2100
SJSZ55 55110 1-40 1200 22 18 150 1000 3500 3620*1350*2200
SJSZ65 65132 1-38 1440 37 24 250 1000 4000 4235*1520*2450
SJSZ80 80156 1-36.9 1800 55 36 360 1000 5000 4750*1550*2460
SJSZ92 92188 1-34.7 2500 110 88 1000 1000 5500 6000*1600*2500
