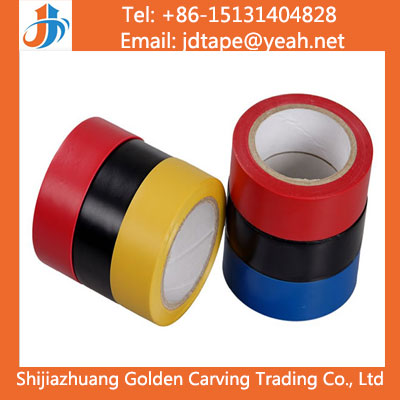

PVC Electrical Tape

Product name: pvc electrical tape
specification: premium grade plasticized flexible pvc film;electrical insulation 600v
application: suitable for indoor and outdoor;insulating wrapping of electrical wires and cables.
product specfiction
product total thickness (um) (mil) peel
adhesion
astm d-1000
(ncm) strength
to backing
astm d-1000
(ncm) tensile
strength
astm d-1000
(ncm) elongation %
at break
astm d-3759 break down
voltage
astm d-1000
(kv)
eb12 120 4.7 1.4 1.4 18 150% 5
eb13 130 5.1 1.4 1.4 20 150% 5
eb15 150 5.9 1.4 1.4 22 170% 5.5
eb18 180 7.1 1.4 1.4 24 190% 6
eb20 200 7.9 1.4 1.4 25 190% 6
jumbo roll finished goods paper core color adhesive
1200mmx20m 19mmx10m 19mmx20m 3238mm blue;black;brown;red; yellow;green;white natural rubber
product specfiction
product total thickness (um) (mil) peel adhesion astm d-1000 (ncm) strength to backing astm d-1000 (ncm) tensile strength astm d-1000 (ncm) elongation % at break astm d-3759 break down voltage astm d-1000 (kv)
eaa10 100 3.9 1.4 1.4 18 150% 5
eaa12 120 4.7 1.4 1.4 20 160% 5
eaa13 130 5.1 1.5 1.5 22 180% 5.5
eaa15 150 5.9 1.5 1.5 22 200% 6
eaa18 180 7.1 1.5 1.5 24 220% 6
jumbo roll finished goods paper core color adhesive
1260mmx20m 19mmx10m 3238mm blue;black;brown;red; yellow;green;white
