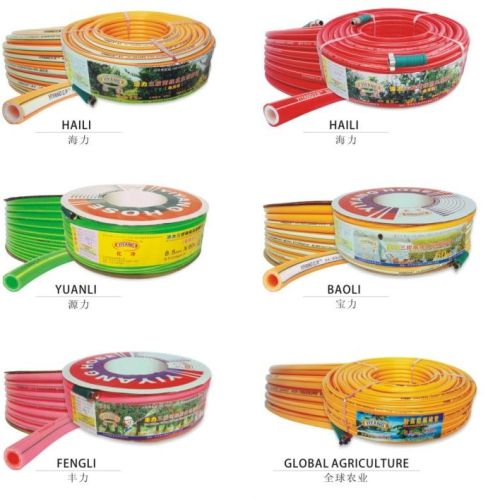

PVC High Pressure Spray Hose

We are offering pvc high pressure spray hose.
working temperature：-5 to 65℃
characteristic：high pressure, great flexible, climate and chemical resistance.
applications: widely used for compressor, sprayer, automatic machineries and pneumatic tools.
1.pvc high pressure spray hose w.p.40bar
item no. inch i.d. o.d. length w.p. b.p. weight packing size
mm mm m bar bar kg/roll dxhxd (mm)
sh1001 9/32 7 12.5 100 40 120 10.5 420x140x180
sh1002 9/32 7.5 13 100 40 120 11 430x150x180
sh1003 5/16 8 13.5 100 40 120 12 440x140x180
sh1004 3/8 10 16 100 40 120 15.5 500x150x200
sh1005 1/2 12 20 100 40 120 25.3 530x190x220
sh1006 1/2 13 21 100 40 120 26.9 560x190x150
sh1007 5/8 16 24 50 40 120 15.8 570x150x250
sh1008 3/4 19 29 50 40 120 23.8 640x180x300
sh1009 1 25 35 50 40 120 29.7 820x180x500
2.pvc high pressure spray hose w.p.60bar
item no. inch i.d. o.d. length w.p. b.p. weight packing size
mm mm m bar bar kg/roll dxhxd (mm)
sh2002 5/16 8 14 100 60 180 13.1 450x150x180
sh2003 5/16 8.5 14.5 100 60 180 13.7 460x160x180
sh2004 3/8 10 16.5 100 60 180 17.1 510x160x200
sh2005 1/2 12 20 100 60 180 25.3 540x200x220
sh2006 1/2 13 21 100 60 180 26.9 570x200x150
sh2007 5/8 16 25 50 60 180 18.3 580x160x250
sh2008 3/4 19 29 50 60 180 23.8 640x180x300
3.pvc high pressure spray hose w.p.80bar
item no. inch i.d. o.d. length w.p. b.p. weight packing size
mm mm m bar bar kg/roll dxhxd (mm)
sh3001 1/4 6 13 100 80 240 13.2 420x150x150
sh3002 5/16 8 15 100 80 240 15.9 470x160x200
sh3003 5/16 8.5 15.5 100 80 240 16.6 470x160x200
sh3004 3/8 10 17 100 80 240 18.7 510x160x200
sh3005 1/2 12 21 100 80 240 29.4 540x200x220
sh3006 1/2 13 22 100 80 240 31.2 570x200x150
sh3007 5/8 16 25 50 80 240 18.3 580x160x250
sh3008 3/4 19 29 50 80 240 23.8 640x180x300
