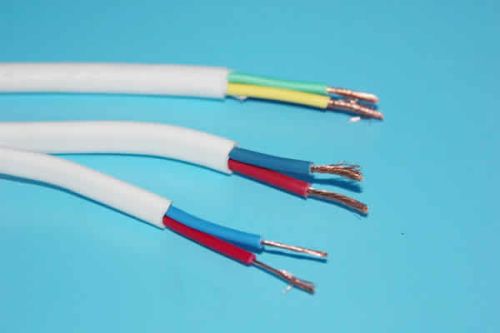

PVC Insulation Flexible Wire

We are offering pvc insulation flexible wire.
Building wire is fit for ac rated voltage 450750v and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
Pvc insulation flexible wire
1.range of application
building  wire is fit for ac rated voltage 450750v and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.service conditions
working temperature:not more than 105℃ for rv-105℃ model.the other no more than 70℃
3.model and name:see table1
model name
rv copper core pvc insulation flexible wire
rvb copper core pvc insulation flat flexible wire
rvs copper core pvc insulation twisted flexible wire
rvv copper core pvc insulation sheath round flexible wire
rvvb copper core pvc insulation sheath flat flexible wire
rv-90 copper core heat-resistak losc pvc flexible wire
4.specification size and technical data:see table 2
nominal section (mm2) core structure no.dia.(mm) max dia.(mm) reference weight(kgkm)
0.3 160.15 2.3 6.4
0.4 230.15 2.5 8.1
0.5 160.2 2.6 9.1
0.75 240.2 2.8 12.2
1.0 320.2 3.0 15.1
rv 450750v
nominal section (mm2) core structure no.dia.(mm) max dia.(mm) reference weight(kgkm)
1.5 300.25 3.5 21.4
2.5 490.25 4.2 24.5
4 560.20 4.8 51.8
6 840.30 6.4 74.1
10 840.30 8.0 12.4
