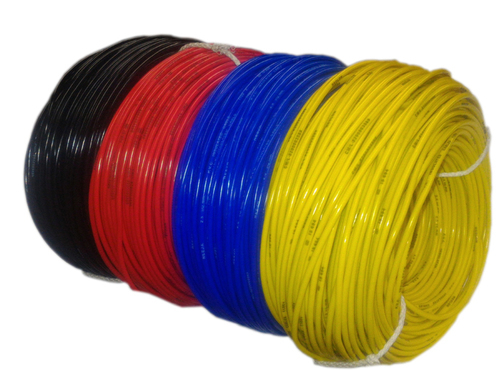

We supply the PVC Multi Core Flexible Cables, which are highly durable and can be availed in different cross-sections, varying from 0.5-10mm. Our team members and professionals possess rich domain knowledge and experience concerning the packaging of all products. We make certain that the products are packed sternly using the best in class material. We make use of premium material for packaging the offered lot so as to ensure safe side deliveries.
| Area in Sq. Mm. | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 |
|---|---|---|---|---|---|---|
| No. & Size of Wires (mm.) | 16/0.2 | 24/0.2 | 32/0.2 | 48/0.2 | 80/0.2 | 128/0.2 |
| Max. Dc Cond. Resistance At 20 C (ohm/km) | 39 | 26 | 19.5 | 13.3 | 7.98 | 4.95 |
| Insulation Thickness Nominal (mm.) | 0.6 | 0.6 | 0.6 | 0.6 | 0.7 | 0.8 |
| Core Diameter (mm.) | 2.2 | 2.4 | 2.5 | 2.9 | 3.6 | 4.3 |
| Sheath Thickness (mm.) | 0.9 | 1 | 1 | 1 | 1.1 | 1.2 |
| Overall Diameter (mm.) | 8.5 | 9.2 | 10.1 | 11.9 | 13 | 15.3 |
| Sheath Thickness (mm.) | 0.9 | 1 | 1 | 1 | 1.1 | 1.2 |
| Overall Diameter (mm.) | 8.5 | 10 | 10.1 | 11.9 | 13 | 15.3 |
| Sheath Thickness (mm.) | 1 | 1.1 | 1 | 1 | 1.2 | 1.3 |
| Overall Diameter (mm.) | 9.35 | 11.85 | 10.45 | 11.9 | 14.45 | 16.9 |
| Sheath Thickness (mm.) | 1 | 1.1 | 1.1 | 1.2 | 1.3 | 1.4 |
| Overall Diameter (mm.) | 11 | 12.2 | 12.25 | 14 | 17 | 20 |
| Sheath Thickness (mm.) | 1 | 1.1 | 1.1 | 1.2 | 1.3 | 1.4 |
| Overall Diameter (mm.) | 11.2 | 12.85 | 12.65 | 14.5 | 17.6 | 20.7 |
| Sheath Thickness (mm.) | 1.1 | 1.2 | 1.1 | 1.2 | 1.3 | 1.4 |
| Overall Diameter (mm.) | 12 | 13.8 | 13.4 | 15.2 | 18.6 | 21.8 |
| Sheath Thickness (mm.) | 1.1 | 1.2 | 1.2 | 1.2 | 1.4 | 1.5 |
| Overall Diameter (mm.) | 12.6 | 14.5 | 14.2 | 16.1 | 19.8 | 23.25 |
| Sheath Thickness (mm.) | 1.1 | 1.3 | 1.3 | 1.3 | 1.4 | 1.5 |
| Overall Diameter (mm.) | 13.5 | 17 | 15 | 17.15 | 21 | 24.5 |
| Sheath Thickness (mm.) | 1.2 | 1 | 1.3 | 1.4 | 1.4 | 1.5 |
| Overall Diameter (mm | 15.6 | 9.2 | 17.6 | 20.4 | 24.5 | 29 |
