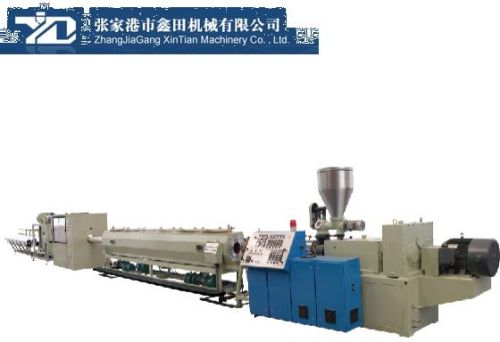

PVC Pipe Large Diameter Production Line, Screw Design : Single-screw

GF series plastic pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. thin set is composed of the concial twin-screw extruder ,vacuum calibrating tank, dragger, cutter, stirin up rack etc. the scres extruder and the extractor adopt the import AC frequency control device . the vacuum pump and electric vehicle motor employ the superior goods. the prime mover has the traction modes such as to claw. three-claw and so on. it may choose the saw blade cutting type or the planet cutting type. it is additionally attached with measuring apparatus and intensifying device. the unit is of the reliable prefor-made abd high production efficiency.
our company may allocate the special installastion for the manufactour of the inner wall spiral coil and core ply blister tube set according to the client's requirements.
Main parameters:
model: GF125
Max pipe diameter:125mm
auxiliary total power:13kw
ccoling water capacity:3T/H
compressed air pressure:0.3-0.6mpa
