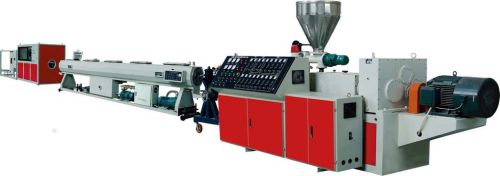

PVC Pipe Production Line

Main Advantage
1.Advanced design of screws supply powerful safeguard for the PVC plasticization.
2.Unique inside oil controlling temperature system adapts different technology.
3.Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Paticular water position, water temperature system make the machine more intelligent.
4.Hauling off unit adopts particular pedrail structure, which is easy and convenient to operation; Pedrial clamping uses mechanical and pneumatic combining system, which is more reliable in performance.
5.Cutting system adopts saw blades and planetary cutting means; Sumping used hydraulic system, which ensures the smooth cross section .
6.Dust-collecting system ensures clean working environment.
Technical Parameter
Model Screw diameter L/D Pipe range Capacity Main motor power Total power Line length
U-PVC63 51/105 14.5:1 16-63 80-120 18.5 50 22
U-PVC160 65/132 14.5:1 75-160 200-250 37 100 22
U-PVC250 65/132 14.5:1 110-250 200-250 37 120 30
U-PVC315 80/156 15.25:1 160-315 300-400 55 200 30
U-PVC450 80/156 15.25:1 200-450 300-400 55 220 36
