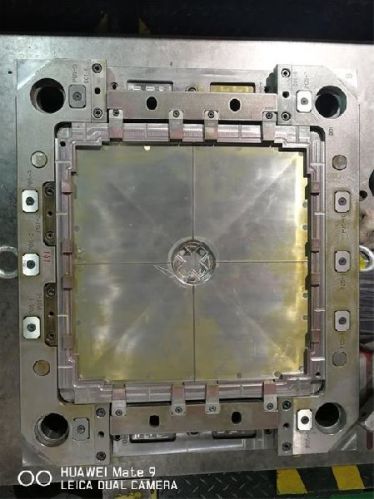

PVC Plate Injection Mould

A strategic advantage of doing business with 3K Mold is our well-equipped in-house mold design and fabrication department. Our team of highly skilled design and tooling engineers and mold makers has a strong background in the design concepts and fine machining techniques required to construct molds that perform quality and uniformity. Complete control of this phase of manufacturing gives us the ability to create molds of the highest quality standards that meet the most challenging industry requirements. Project Information   Product Description Part Name PVC Plate Injection Mould Part Material PVC White Part Size(mm) 390x390x41mm Mould Description Cavity Insert Material 1. 2316H HRC30-32  Core Insert Material 1. 2316H HRC30-32  Slider Insert Material 1. 2316H HRC30-32  Mould Cavities 1 Mold parts Standard Hasco Mold Size 700X700X570MM Mold weight 2026kg Lead time 7  weeks Mould Life Time (Shots) 250,000 Mould Type Export to Netherlands Runner Description Cold runner Injection Gate Type Edge gate Ejection System Ejector pin Slide Qty. 4 Lifter Qty. 0 Cycle time 60S Surface finish Technical smooth Injection moulding machine 500T 3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
