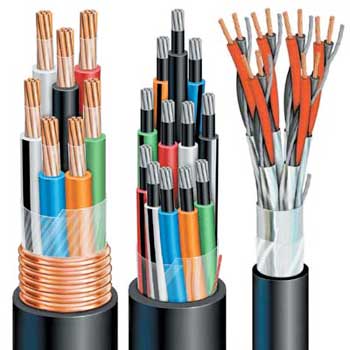

We are counted among the most eminent PVC Power Cables Exporters from India. The materials used in the manufacturing are of optimum quality that ensures high durability, flexibility and resistivity in PVC Electric Power Cables to various adverse conditions. Additionally, customers are facilitated with the availability of the Insulated PVC Power Cables in varied sizes and dimensions as per specific specifications. Power cables made of copper / aluminium conductor, PVC / XLPE insulated having voltage rating upto 1100V AC/ 1500V DC armoured / unarmoured with PVC outer jacket made as per IS 1554 Part-I, IS 7098 Part I, BS 5467, IEC 502, any other national/international standard or customer specification. Size

1.5 Sq.mm. to 630 Sq.mm. in 2 to 4 core.

1000 Sq.mm in single core

.5 Sq.mm. & 2.5 Sq. mm. upto 61 Cores in case of control cables.

Conductor : Annealed Bare Electrolytic Grade Copper / Aluminium Conductor conforming to IS:8130: 1984. Shaping of Conductor is applied above 10.0 Sq.mm. inAluminium & 6.0 Sq.mm. in Copper. Insulation : Type A PVC Compound capable of withstanding conductor temperature upto 70°C for general purpose insulation & 85°C for Heat Resistant insulation conforming to IS:583I:1984 or XLPE insulation for conductor temperature upto 90°C. Colour of Cores Cores are identified with a colour scheme as per IS:1554(Pt-I) : 1988 as under

Cores-Red, Black, Yellow, Blue or Natural (non-pigmented).

Cores - Red & Black

Cores - Red, Yellow & Blue.

Core-Red, Yellow, Blue & Black. (Reduced Neutral Core in case of 3 1/2 Core)

Cores-Red, Yellow, Blue, Black & Grey

In case of cable exceeding five cores, two adjacent (counting and direction cores) in each layer shall be coloured Blue, Yellow and remaining cores grey or cores can be identified by numbers printed on that of same colour. Laying of Cores : Cores are laid up as per the above colour scheme. The final lay direction shall be kept right hand. Inner Sheath : The Inner Sheath is applied over laid up of cores by extrusion / wrapping of thermoplastic material. Armouring : It is applied over inner Sheath. It may consist of galvanized Round Steel wires or galvanized Flat Steel Strips conforming to IS:3975. Round Wire armouring is provided, where the calculated diameter under armour is 13.0 mm. Above this, armouring is either round wire/steel strip. In single core cables used in AC systems, armouring I done by non-magnetic hard drawn aluminium wires / strips. Outer Sheath : A final covering of PVC Compound, conforming to IS:5831:1984, is applied over Armouring in case of Armoured Cable or over Inner Sheath in case of Unarmoured Cable, called as "Outer Sheath". Outer Sheath : A final covering of PVC Compound, conforming to IS:5831 : 1984, is applied over Armouring in case of Armoured Cable or over Inner Sheath in case of Unarmoured Cable, called as "Outer Sheath". The insulation, inner sheath & outer sheath can be of HR PVC, FRLS PVC, FRHF(Flame Retardant Halogen Free) or ROHS Compound depending upon the application.
