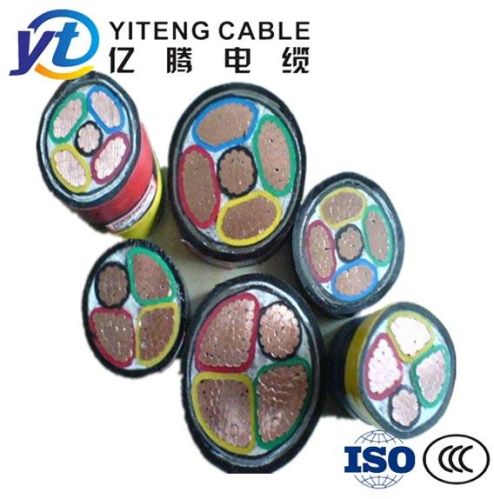

Contact SupplierWe are offering cu conductor xlpe insulated pvc sheathed power cable.
detailed description
cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.
Product features:
1) no necessary to heat up in advance while installing above 0oc.
2) max. Continuous normal operating temperature: 90oc (pvc sheathed cable).
3) max. Permissible temperature at short circuit (5s. At longest): 250oc.
4) permissible bending radius:
single core: ≥20(d+d)±5%.
Three-core:≥15(d+d)±5%(d is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
