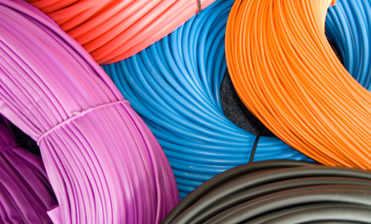

PVC Sleeves

FEATURES BENEFITS of PVC Sleeves Widely used for protection of cable harnesses. To be used before wires are connected to any type of terminal.

Company Information

Ask for more detail from the seller

Report incorrect details

em No.	Name of the Test	Test Method	Test Method	Result Specified	Result Observed
1	Tensile Strength	IS 10810:7	IS 10810:7	12.5	13.26
2	Elongation At Break	IS 10810:7	IS 10810:7	150 Minimum	171
3	Heat Test	IS 10810:14	IS 10810:14	No Cracks should appear	No Crack Observed
4	Thermal Stability	IS 10810:19	IS 10810:19	40 minutes	45
5	Loss Of Mass	IS 10810:10	IS 10810:10	2	1.6
6	Hot Deformation	IS 10810:15	IS 10810:15	50% Maximum	43
7	Shrinkage	IS 10810:12	IS 10810:12	4 % Maximum	2.8
8	Cold Bend Test	IS 10810:20	IS 10810:20	No Cracks should appear	No Cracks Observed
9	Dielectric Test	IS 10810:43	IS 10810:43	1 x 1013	1.8x1015
10	Color Fastness Test	IS 10810:18	IS 10810:18	No change on Filter paper	No Change In Colour Observed
11	High Volt Test	IS 10810:45	IS 10810:45	5 minutes at 3 KV	Sample Withstood At 3kv For 5mins.

TECHNICAL SPECIFICATION
Item No.	Name of the Test	Test Method	Test Method	Result Specified	Result Observed
1	Tensile Strength	IS 10810:7	IS 10810:7	12.5	13.26
2	Elongation At Break	IS 10810:7	IS 10810:7	150 Minimum	171
3	Heat Test	IS 10810:14	IS 10810:14	No Cracks should appear	No Crack Observed
4	Thermal Stability	IS 10810:19	IS 10810:19	40 minutes	45
5	Loss Of Mass	IS 10810:10	IS 10810:10	2	1.6
6	Hot Deformation	IS 10810:15	IS 10810:15	50% Maximum	43
7	Shrinkage	IS 10810:12	IS 10810:12	4 % Maximum	2.8
8	Cold Bend Test	IS 10810:20	IS 10810:20	No Cracks should appear	No Cracks Observed
9	Dielectric Test	IS 10810:43	IS 10810:43	1 x 1013	1.8x1015
10	Color Fastness Test	IS 10810:18	IS 10810:18	No change on Filter paper	No Change In Colour Observed
11	High Volt Test	IS 10810:45	IS 10810:45	5 minutes at 3 KV	Sample Withstood At 3kv For 5mins.

Item No.	Inner Diameter (in mm)	Wall Thickness (in mm)	Standard Colors	Standard Packing
SL0.5X	0.50	0.40	Black,Red,Blue,Yellow,Green & Transparent	100 Mtr Roll
SL1X	1.00	0.40	"	"
SL1.5X	1.50	0.40	"	"
SL2X	2.00	0.40	"	"
SL2.5X	2.50	0.40	"	"
SL3X	3.00	0.40	"	"
SL3.5X	3.50	0.40	"	"
SL4X	4.00	0.40	"	"
SL5X	5.00	0.40	"	30 Mtr Roll
SL6X	6.00	0.50	"	"
SL7X	7.00	0.50	"	"
SL8X	8.00	0.50	"	"
SL9X	9.00	0.50	"	"
SL10X	10.00	0.50	"	"
SL12X	12.00	0.55	"	"
SL14X	14.00	0.75	"	"
SL15X	15.00	0.75	"	"
SL16X	16.00	0.75	"	"
SL18X	18.00	0.75	"	"
SL20X	20.00	0.75	"	"
SL22X	22.00	0.75	"	"
SL25X	25.00	0.75	"	"
SL30X	30.00	1.00	Black	"
SL32X	32.00	1.00	"	"
SL35X	35.00	1.00	"	"
SL40X	40.00	1.00	"	"
SL50X	50.00	1.25	"	"
1. Note: "X" in all item no. denotes the colour of sleeve required. 2. Other sizes of different inner diameters, wall thickness and colours are available on request. 3. Material: Made from premium virgin PVC compound developed in-house by SGI.
