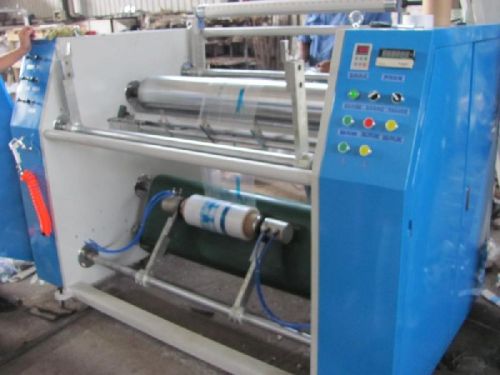

Contact SupplierThis is automatic model of pre-stretch film rewinder which designed for the rapid rewind stretch film from jumbo roll into small rolls by pre stretch.by pre-stretch, the stretch film can rewind different length from 100-300% due to different ratio setting.the machine is user friendly, high speed. A non skilled operator can run the machine, maximum can operate 3 units of machines, by special designed automatic convey belt system to join the several machines products into one packaging area1-automatic control for speed adjustment2- automatic paper core change program, make increase the efficiency.3- user friendly by plc program and touch screen width of parent roll   : 500mm core specification of parent roll φ76mm max diameter of parent roll(max)mm φ400mm width of sub-roll 500mm core specification of sub-roll φ76mm max diameter of sub-roll(max)mm φ l45mm max rewinding speed 800 mmin pressure 6bar plc siemens weight (kg) 800kg l×w×h 1300×1050×1645mm
