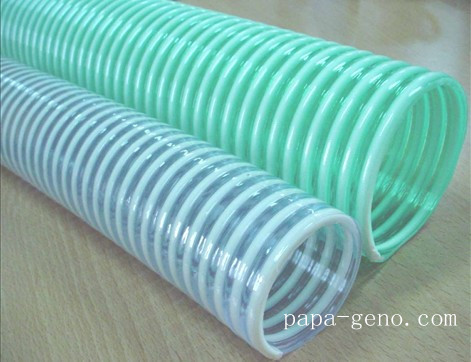

PVC Suction Hose

We are offering pvc suction hose.
　　 pvc suction hose
keywords:pvc suction hose,pvc hose,pvc plastic spiral hose,pvc helix suction hose
application: for conveying powder,grain,water,oil,chemical material and food in the fields of mining, agriculture and irrigation,civil works,foodstuff,petroleum,sanitation etc.pvc suction hose is an ideal alternative product of rubber hose and metal hose.
features: pvc suction hose is made of pvc and high-strength plastic. It features light weight, good softness, good elasticity,corrosion resistance, hydrolysis resistance, high transparence.it has extremely high strength and long service life. Temperature: -5 degrees centigrade -65degrees centigrade
package:30 m/coil
we are able to customize non-standard hose based on the customer"s specific needs.
data:
i.d.(mm) o.d.（mm） work pressure (mpa)
package（m/coin）
size tolerance size tolerance
16 ±1.2 21 ±1.2 -0.1-0.4 30
19 ±1.2 25 ±1.2 -0.1-0.4 30
25 ±1.2 37 ±1.2 -0.1-0.6 30
32 ±1.2 40 ±1.2 -0.1-0.7 30
38 ±1.2 46 ±1.2 -0.1-0.6 30
51 ±1.2 60 ±1.2 -0.1-0.6 30
64 ±1.2 73 ±1.2 -0.1-0.5 30
76 ±1.2 86 ±1.2 -0.1-0.4 30
102 ±1.2 113 ±1.2 -0.1-0.3 30
127 ±1.2 139 ±1.2 -0.1-0.3 30
152 ±1.2 166 ±1.2 -0.1-0.3 30
203 ±1.2 232 ±1.2 -0.1-0.63 30
