PVC Window Machine, Seamless Welding Machine

We are offering pvc window machine, seamless welding machine.

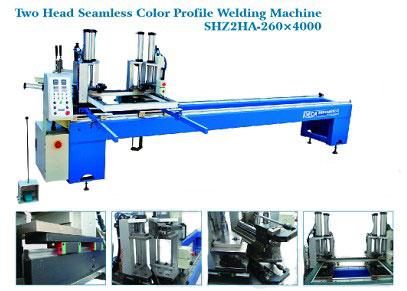

Two head seamless color profile welding machine shz2ha-260 4000
funciton:
used for seamless welding for pvc color profile, and automatically realize the weld seam cleaning of upper and lower sides after welding.
Features:
it can be realized 0.2mm welding of colored pvc profile, and automatically clean the upper and lower sides after welding. That is ideally complete the cleaning of upper and lower in cleaning process.
Less than a minute for profile welding and cleaning, increase the efficiency.
All motion pair adopted linear bearing guide system, increases processing precision, ensure the reliability and stability of the machine.
The max. Welding height reach to 260mm, and two pieces profiles welding (less than 120mm) at one time is available by change the double layer profile fixture.
Adjustable positioning distance, heating distance and feeding distance, ensures the optimal welding quality.
Special profile fixture can be installed, which improves the appearance of welding products, welding strength increased by 20%.
Special know-how technique which produces very highquality color pvc windows and doors.
Parameter:
air pressure: 0.5mpa~0.8mpa
air consumption: 40l/min
input voltage: 220v 50hz
input power: 3.5kw
welding range: 460mm~3960mm
welding height: 260mm
welding width: 100mm
overall dimension: 4750mm×1750mm×1100mm
weight: 760kg.
