    PVC Window Water Slot Drilling Machine

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    We, as a prominent Manufacturer, Supplier and Exporter, present PVC Window Water Slot Drilling Machine. The raw materials for machine are procured from the vendors who are willing to deliver absolute....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 10 Years
    • building Nature of Business Supplier
    • Year of Establishment 2002

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    We, as a prominent Manufacturer, Supplier and Exporter, present PVC Window Water Slot Drilling Machine. The raw materials for machine are procured from the vendors who are willing to deliver absolute quality on a consistent basis. It is known for its strong built, durability and precise design. The quality of machine is aligned with the industrial quality standards. Get the impeccable quality on offer delivered at your doorstep.
    Product Description :

    • The machine is used for processing various water grooves and air pressure balance grooves.
    • The upper one can be adjusted forward, backward, upward and downward.
    • The upper and horizontal directions can be processed with one time clamping. It has the features of high efficiency, reliability, high accuracy and easy operation.
    • We can make the single axis, two axes, three axes, four axis according to your needs.
    • Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.


    Technical Data

    Model numberSCX01-2
    Working air pressure0.4~0.6Mpa
    Air consumption30L/min
    Power supply220V 50Hz
    Input power0.5kw×2
    Motor rotational speed25000 r/min
    Max-length of groove30mm
    Max-depth of groove40mm
    Milling cutter diameter 5mm
    Outside dimension2940×860×1660mm
    weight(about)200kg

    Product Images

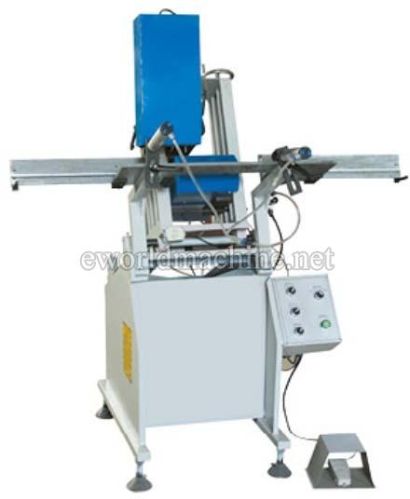

    • PVC Window Water Slot Drilling Machine
    • PVC Window Water Slot Drilling Machine
    • PVC Window Water Slot Drilling Machine
