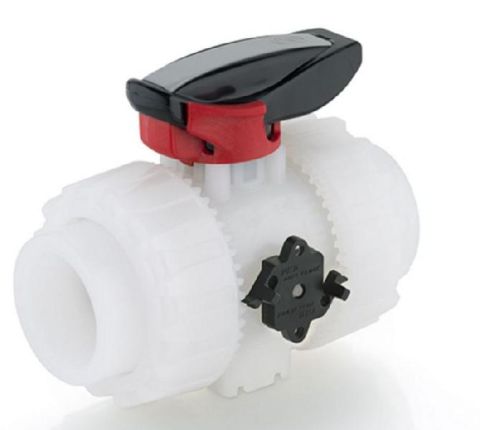

PVDF Ball Valve

The innovative True Union ball valve with union nut tightening control, that permits simple and safe installation for reliable service in time.
Main Features:

• Settings for the customisable Labelling System using the LCE module (available as an accessory). The grey protection plug housed on the handle can be replaced with the transparent plug and customisable tag holder with the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs
• The PE ball seat system with locked carrier adjustable via Easyfit multifunctional handle or Easytorque adjustment kit (available as an accessory.

Type:

• PVDF ball

Operation:

• manual

Body:

• with trunnions, PVDF

Other characteristics:

• 2-way

Temperature:

• Min = -40⁰C (32⁰F)

• Max = 140⁰C (140⁰F)

Operating pressure:

• Min - 0 bar (0 psi)
• Max - 16 bar (232.06 psi)

DN:

• Min - 10 mm
• Max - 50 mm
