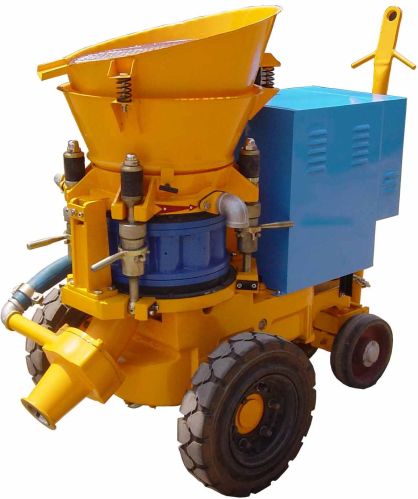

Pz-3 Dry Shotcrete Machine

We are offering pz-3 dry shotcrete machine.
features:
non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
technical data:
type pz-3 pz-5 pz-9
name
output 3 /h 5.5 /h 9 /h
max.conv.dist 200 m 200 m 150 m
water cement ratio
max.aggregate.size 10 mm 15 mm 20 mm
hose inner size φ42/50 mm φ50 mm φ64 mm
operating air pressure 0.2-0.6 mpa 0.2-0.6 mpa 0.2-0.6 mpa
air consumption 5-6 /min 7-8 /min 9-10 /min
motor power 3 kw(4hp) 5.5 kw(7.5hp) 7.5 kw(10hp)
voltages 380v,440v,660v,1140v 50hz/60hz
