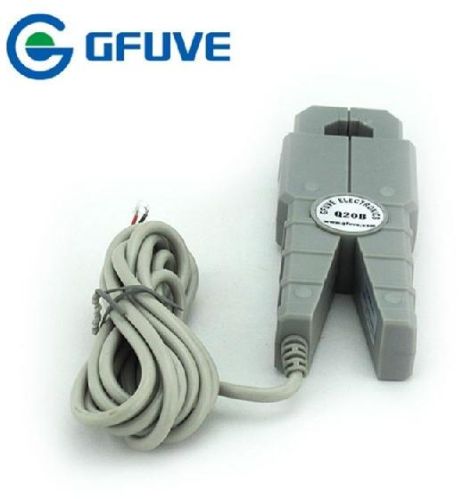

Q20B High Performance Openable Jaw AC Current Clamp

Product introduction
q20b high performance openable jaw ac current clamp on cts
usage the model q20b openable jaw ac current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Applications 1. electric energy meter calibrator (on site) 2. double clamp type ground resistance tester 3. double clamp type phase volt-ampere meter 4. digital multi-meter 5. multi-function energy meter 6. oscilloscope 7. power quality analyzer 8. matched instruments 9. calibration instrument on site
features 1. measurement range of 1ma to 200a ac 2. small, compact size 3. improved ergonomic design and easy operation 4. low phase shift for power measurement 5. with load capacity â�¤4î© 6. output model: lead output(2.5m)
parameters
electrical parameters
ratio 1000: 1 or 2000:1 (customized)
accuracy class 0.1%, 0.2%, 0.5%
primary current 0 - 200a ac
secondary current 0 - 200ma ac or 0 - 200mv ac (customized)
max. Cont. Input current 240a
over voltage category cat iii 600v
output signal (ac current) from 0 to 200ma ac at nominal input current
output signal (ac voltage) from 0 to 200mv ac at nominal input current
frequency range 40hz-2000hz
dielectric strength 3kv 50hz60hz at 1 minute
temperature range -20â°c to +55â°c
output 2.5 meter cable with d01 connector
max. Voltage not insulated conductors 600 v
standard en 61010-1, en 61010-2-032, iec60044-1
installation clamp type
output mode lead output (2.5m)
mechanical parameters
dimensions (l x w x h) (mm) 56 x 168 x 27
weight (g) 350
holding wire diameter (mm) ï�20
max. Jaw opening (mm) 20
color gray
material pc+abs+polycarbonate, ul94 v0
