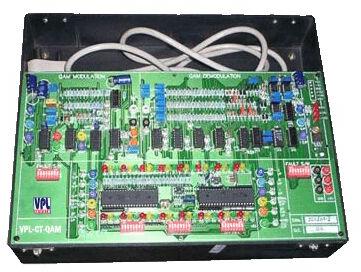

QAM Trainer (VPL-CT-QAM)

Fault Switches4 nos. through 4 way DIP switch for troubleshooting at different blocks.
Test PointsMore than 35.
AccessoriesSet of Patch Cords, User’s manual.
CabinetEnclosed in ABS plastic cabinet with detachable cover.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.6/5

(28)

Ask for more detail from the seller

Report incorrect details

Sine & Cosine Carrier Generator4.5KHz(approx.).
Data Sequence24 bit User Selectable data with the help of 3×8 Dip Switches.
CabinetEnclosed in ABS plastic cabinet with detachable cover.
AccessoriesSet of Patch Cords, User’s manual.
Interconnections2/4 mm socket.
Data FormatSynchronous with carrier
Data CodingTri-bit data coding for generating C, Q and I signals from 24 bit user data.
Test PointsMore than 35.
Fault Switches4 nos. through 4 way DIP switch for troubleshooting at different blocks.
Power220V AC ±10%, 50/60Hz mains operated.
Data SpeedFixed greater than 4.5 KHz

SALIENT FEATURES

On – Board 24 data bit generator
On – Board 4 phase generator (sine0, cosine0, -sine & -cosine i.e., 0°, 90°,180° 270°)
On – Board Tribit Encoder - Decoder
On – Board data switches for I, C & Q
On – Board word clock generator
On – Board Input / Output Buffer
On – Board Test Points & Fault Switches
