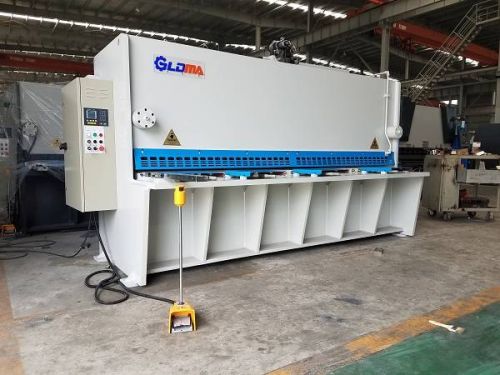

QC11K-NC Hydraulic Guillotine Shearing Machine, Brand Name : GLDMA

1. The design of the guillotine shearing machine and cutter machine conforms to eu international standards.
2. The fuselage eliminates internal stress by annealing and vibration, ensuring high strength and precision.
3. Using solid works 3d programming to design all these products and made with enhanced st44-1 quality steel with the latest technology.
4. This qc11k nc shearing and cutting machine made by high-quality alloy tool steel which can meet the requirements of impacting load and high wear resistance when working. Backgauge is adjusted by hiwin high-precision ball screw and linear guide driven by delem dac360 cnc controller.
5. Frequency converters prevent positioning device horizontal swinging, effectively improving the positioning accuracy of x axis in working process.
6. Rapid adjustment mechanism for rearranging blade clearance, rolling ball worktable to reduce friction and prevent work piece from scratching. Simple operation by hand and adjusting steplessly.
7. Can read oil level easily by oil gauge.
8. Detecting the cutting angle by the grating ruler.
9. Front safeguard rail adopts opening door cut off power to ensure operational safety.
standard equipment
1. Estun e21s nc controller system.
2. Ball screw accuracy of 0.01mm(hiwin, taiwan).
3. Oil tube connectors from emb germany.
4. Steel whole casting, fuselage integral annealing.
5. Steel mono-block construction.
6. Delta frequency converter.
7. Hydraulic and electrical overload protection
8. Standard electrics from schneider, france.
9. Oil tube connectors from emb, germany.
10. Hydraulic valves from first, america.
11. Oil pump from sunny, america.
12. Main motor from siemens, germany.
13. Hydraulic and electrical overload protection.
14. Light guards ensure the safety of operators during operation(optional).
