Qd Trolley

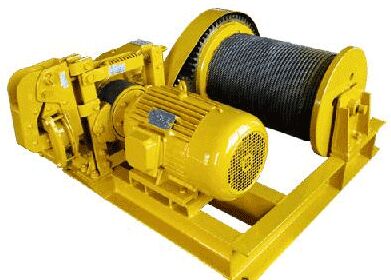

We are offering qd trolley.qd double girder winch trolley
qd model double rail winch with trolley.
which composed by motors, reducers, brakes, drum, hook blocks, wire ropes, pulley, wheels , couplings, and
trolley steel frames etc. Spare parts to locate on one trolley, to do as the lifting and traverse mechanism of the
qd model double girder eot cranes,
it also can foot mounted in some area to do as the winches, lifting up and down materials.
which mainly suitable with the middle and heavy working duty jobs, compare to lh model hoist trolley, it will
much more durable, easy maintenance, working duty much more heavier and frequency, which is the most
popular model in china cranes industry now.
lifting capacity: 3t- 600t
lifting height: 6- 60m
working duty: m5- m7
trolley gauge: 1150mm, 1800mm, 2000mm, 2500mm, 3000mm etc.
or according to your requirement.
power: 380v/50hz/3-phase
high quality material
1.electrical equipment:schneider control box material:q235b
2.motor:nanjing special electric
3.bearing:ha‘erbin bearing
4.gear:20chromium manganese titanium
5.hook:40 chrimium forge
6.wire rope:guizhou julong limited liability company
7.transmission shaft:45#quenched and tempered steel
8.cover and coiling block:thicken steel plate
hoists enquiry information need:
1. Capacity
2. Lifting height
3. Lifting speed and running speed requirement.
4. Power supply
5. Any other special requirement you need,like I beam type
