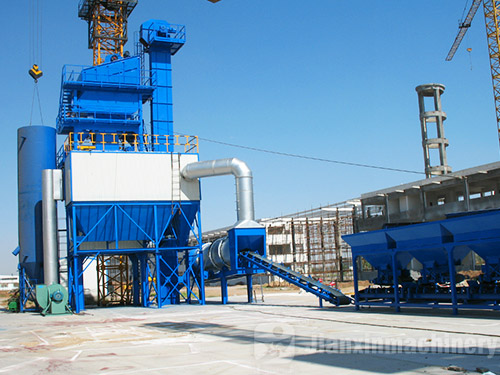

QLB Mobile Asphalt Mixing Plant, Certification : ISO CE

technical parameter
Model QLB-10 QLB-15 QLB-20 QLB-30 QLB-40 QLB-60 QLB-80
Capacity 10th 15th 20th 30th 40th 60th 80th
Total power fuel 41.5kW 54kW 63.5kW 104.5kW 125kW 157.5kW 200kW
Coal 57.5kW 75kW 86.5kW 127.5kW 169kW 205kW 276kW
Aggregate batching machine 2.3m3*3 2.3m3*3 2.3m3*3 5m3*3 5m3*3 5m3*3 5m3*4
Finished material silo 2t 5t 5t 9t 9t 9t 20t
Asphalt concrete temperature 120-180°C(adjustable)
Fuel consumption of fuel fuel:5-7.5kgt; coal:13-15kgt
Optional component water dusting, bag dust removal, control room, asphalt heating tank
Product features
The drying drum and double shaft stirring integrated design, mixing, asphalt production quality.
The measurement is accurate and the quality is stable.
The structure is simple, the operation is convenient, the drum is reversed to dry, and the material is turned out.
Programmable control system, touch screen, automatic control and manual control can be switched freely.
The chassis of the trailer is designed for transportation and installation.
The dual purpose combustion furnace of coal fired fuel can be selected according to the needs of the user.
Stable and reliable, easy to maintain.
