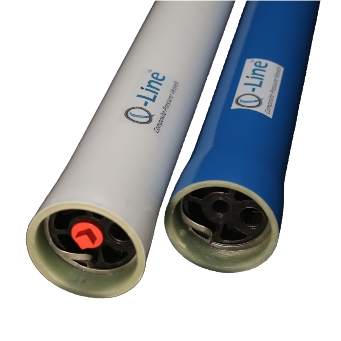

Qline Vessels

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Mirror Finish ID for easy Er quick loading and unloading of membranes Quick lock head retention system for quick access to membranes Exteriors coated with high gloss poly urethane paint for UV Resistance Compact design for use in compact and low energy water treatment units More accurate Head Seal Area is formed by mandrel surface Head Seal is captured, hence doesn't roll during head assembly fitment

View More Details

Send Enquiry

Technical Specification

MEMBRANE	MAX	MAX	QUALITY	BURST	ELEMENT
FILTER HOUSING	OPERATING	OPERATING	CONTROL	PRESSURE	LENGTH
MODEL NO.	PRESSURE	TEMPERATURE	TEST PRESSURE
Q-40E-300	3001351(20Bar)	49°C (120°F)	450PSI (31Bar)	1500PSI (103Bar)	1- 6
Q-40E-450	450PS1 (31Bar)	49°C (120°F)	675PSI (47Bar)	2250PS1 (155Bar)	1- 6
Q-40E-600	600PSI (41Bar)	49°C (120°F)	900PSI (62Bar)	3000PSI (207Bar)	1- 6
Q-40E-1000	1000PSI (41Bar)	49°C (120°F)	1500PSI (103Bar)	5000PSI (345Bar)	1- 6
