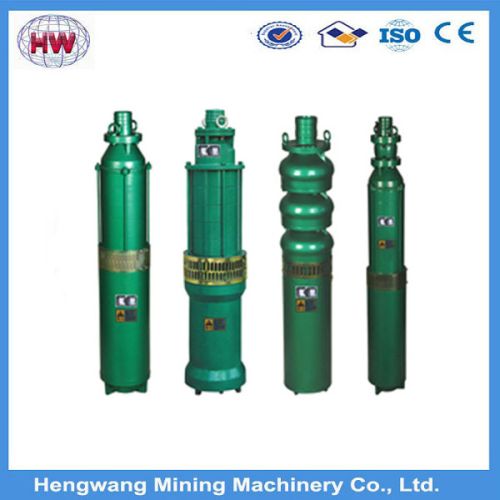

Qs Type Caterpillar Water Submersible Pump

We are offering qs type Caterpillar Water Submersible Pump.
Advantages of our products for 10hp submersible water pump
1, low noise & long life
2, small, light weight
3, easy installation and maintenance
4, high-efficiency& energy-savingetc
working conditions for 10hp submersible water pump
1, voltage 380v, frequency 50hz
2, the inside of the motor must be filled with water
3, the temperature within 20°c
4, the water sediment concentration (by mass) within 0.1%
5, ph 6.5 - 8.5
no. specifications and models flux lift power remark
outlet diameter
1 qs10-34-2.2 10 34 2.2 1.5"
2 qs10-54-3 10 54 3 1.5"
3 qs10-72-4 10 72 4 1.5"
4 qs10-90-5.5 10 90 5.5 1.5"
5 qs10-102-5.5 10 102 5.5 1.5"
6 qs10-105-7.5 10 105 7.5 1.5"
7 qs10-120-7.5 10 120 7.5 1.5"
8 qs10-144-7.5 10 144 7.5 1.5"
9 qs15-26-2.2 15 26 2.2 1.5"
10 qs15-52-4 15 52 4 1.5"
11 qs20-30-3 20 30 3 2"
12 qs20-45-4 20 45 4 2"
13 qs20-54-5.5 20 54 5.5 2"
14 qs20-67-7.5 20 67 7.5 2"
15 qs20-81-7.5 20 81 7.5 2"
16 qs25-17-2.2 25 17 2.2 2"
17 qs25-26-3 25 26 3 2"
18 qs25-34-4 25 34 4 2"
19 qs25-45-5.5 25 45 5.5 2"
20 qs32-26-4 32 26 4 3"
21 qs32-39-5.5 32 39 5.5 3"
22 qs32-52-7.5 32 52 7.5 3"
23 qs40-16-3 40 16 3 3"
24 qs40-21-4 40 21 4 3"
25 qs40-25-5.5 40 25 5.5 3"
26 qs40-30-5.5 40 30 5.5 3"
27 qs40-40-7.5 40 40 7.5 4"
28 qs65-7-2.2 65 7 2.2 4"
29 qs65-10-3 65 10 3 4"
30 qs65-18-5.5 65 18 5.5 4"
31 qs65-25-7.5 65 25 7.5 4"
32 qs80-13-4 80 13 4 4"
33 qs80-16-5.5 80 16 5.5 4"
34 qs80-22-7.5 80 22 7.5 4"
35 qs100-4.5-2.2 100 4.5 2.2 4"
36 qs100-9-4 100 9 4 4"
37 qs100-12-5.5 100 12 5.5 4"
38 qs100-17-7.5 100 17 7.5 4"
39 qs120-10-5.5 120 10 5.5 5"
40 qs125-12-7.5 125 12 7.5 5"
41 qs150-10-7.5 150 10 7.5 5"
42 qs160-4-3 160 4 3 5"
43 qs250-5-5.5 250 5 5.5 5"
