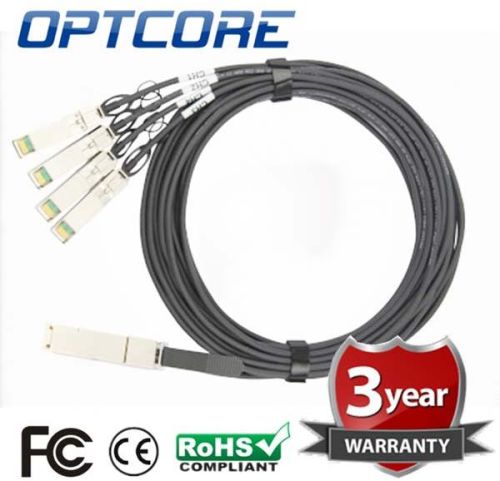

Qsfp28-100g-dac-pxm 100g Qsfp28 1m 2m 3m 5m Direct Attach Copper Cable

₹ 90.50 / 100 100 Piece

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer Qsfp28-100g-dac-pxm 100g Qsfp28 1m 2m 3m 5m Direct Attach Copper Cable. Features • Compliant with SFF-8665SFF-8679 • Compliant with IEEE 802.3bj • 4 independent full-duplex....

Product Details

We offer Qsfp28-100g-dac-pxm 100g Qsfp28 1m 2m 3m 5m Direct Attach Copper Cable.
Features
• Compliant with SFF-8665SFF-8679
• Compliant with IEEE 802.3bj
• 4 independent full-duplex channels
• Up to 25.78125 Gbps data rate per channel
• Up to 5m transmission
• Single 3.3V power supply
• Low insertion loss
• BER better than 10-15
• Temperature range: 0°C to +70°C
Specifications
• Form Factor: QSFP28 Direct Attach Copper Cable Passive
• Data Rate: 100Gbs
• Wavelength:
• Max Distance: 1m2m3m5m
• Optical Components:
• Operating Temperature: 0~70ºC
Applications
• 40G100G Ethernet
Standards
• Compliant with IEEE 802.3ba
• Compliant with CFP2 MSA hardware specifications
• Compliant with CFP2 MSA management specifications
• Compliant with ITU-T G709Y.1331
• Compliant with RoHS
Ordering information
Part number Description
QSFP28-100G-DAC-P1M 100Gbs QSFP28 Direct Attach Copper Cable,Passive,1m,AWG30
QSFP28-100G-DAC-P2M 100Gbs QSFP28 Direct Attach Copper Cable,Passive,2m,AWG30
QSFP28-100G-DAC-P3M 100Gbs QSFP28 Direct Attach Copper Cable,Passive,3m,AWG26
QSFP28-100G-DAC-P5M 100Gbs QSFP28 Direct Attach Copper Cable,Passive,5m,AWG24
