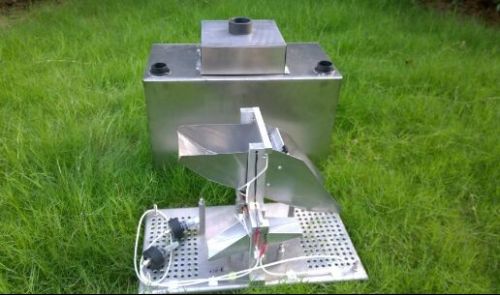

QT-1000/50 Double Tipping Bucket Flowmeter

Product description: surface runoff is the flow of water that occurs when excess water from rain, meltwater, or other sources flows over the earth's surface. This might occur because soil is saturated to full capacity, or because rain arrives more quickly than soil can absorb it. Surface runoff is a major component of the water cycle. It is the primary agent in soil erosion by water. Qt series tipping bucket flowmeter can be used to monitor no-pressure, low-head, and small discharge flow of surface or underground runoff.
Qt-100050 double tipping bucket flowmeter
features
stainless steel, suitable for long-term use in extreme environment
data logger achieves nema 6 and ip67 standard, suitable for outdoor use
power supply is simple, cr-2032 3v lithium battery, no need of solar panel and storage battery
suitable for monitoring of surface runoff and underground runoff
specification
tipping bucket flowmeter
sensor type
tipping bucket with magnetic reed switch
output
contact closure
capacity
1000ml50ml
cable length
3m
size
600 mm * 260 mm * 500 mm
material
sus304 stainless steel aluminum alloy
orifice diameter
50 mm
weight
8 kg
temperature measurement
measurement range
-20~+70℃
accuracy
±0.53℃（0~50℃）
resolution
0.14℃（25℃）
drift
0.1℃year
response time
10 min, usually 90% (2ms air flow)
