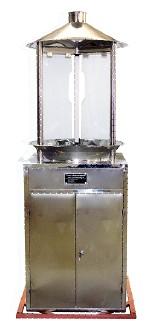

QT-CB01 Automatic Insect Pest Inspection Lamp

LED displays air temperature and humidity, pointer shows instrument voltage and current;
The production and inspection in line with the GBT 24689.1-2009 plant protection machinery standards;
Use optical, electric, and numerical control technologies, compatible with ATCSP plant diseases and pests inspection and prevention system;
Auto-on in the daytime and auto-off at night. Nighttime working status is not affected by instantaneous intense light ;
Use far-infrared light to process pest bodies rapidly (no poison bottle);
Insect chamber has an auto rotation system with gear drive, which ensures separate insect samples collected in 8 different time periods;
Rain control device can automatically manipulate the work of the whole lamp according to rainfall change;
Drainage device can effectively separate the insects from the rain;
QT-CB01 Automatic insect pest inspection lamp
Technical parameters:
Light trap
20 w black light lamp (main wavelength 365 nm)
Lamp body material
GB32080-92 stainless steel structure,
in accordance with GBT4237
Lamp support material
GB3280-80 stainless steel
Lamp dimension
650 mm×650 mm×1900 mm
Power supply
DC 24 V; 24 V 100 W solar panels, 24 V 38 AH storage battery
Power consumption
Standby no more than 5 W, total power consumption no more than 300 W
Startup time
within 5 s
Temperature control of far-infrared insect pest chamber
85 ± 5 ℃ after 15 min of operation, processing time is adjustable (15 choices)
