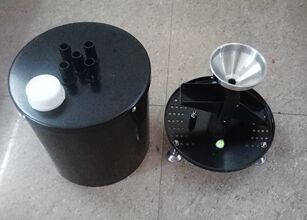

QT Series Tipping Bucket Flow Meter

Product description: surface runoff is the flow of water that occurs when excess water from rain, meltwater, or other sources flows over the earth's surface. This might occur because soil is saturated to full capacity, or because rain arrives more quickly than soil can absorb it. Surface runoff is a major component of the water cycle. It is the primary agent in soil erosion by water. Qt series tipping bucket flowmeter can be used to monitor no-pressure, low-head, and small discharge flow of surface or underground runoff.
Qt series tipping bucket flowmeter qt series tipping bucket flowmeter
specifications
tipping bucket flowmeter
model
qt-50ml
qt-100ml
qt-1000ml
sensor type
tipping bucket with magnetic reed switch
output
contact closure
cable length
3 m
3 m
3 m
capacity
50 ml
100 ml
1000 ml
size
30 cm l * 220 cm w *30 cm h
30 cm l * 220cm w *30 cm h
26 cm l *40 cm w *60 cm h
material
sus304 stainless steel aluminum alloy
orifice diameter
20 mm
20 mm
50 mm
weight
4 kg
4 kg
7kg
temperature measurement
measurement range
-20~+70℃
accuracy
±0.53℃（0~50℃）
resolution
0.14℃（25℃）
drift
0.1℃year
response time
10 min, usually 90% (2 ms air flow)
