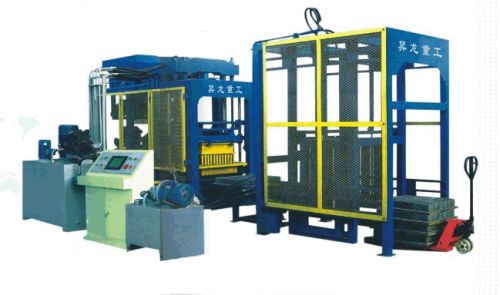

Qt12-15hydraulic Automatic Block Machine

The main technical characteristics
Molding machine frame: using high strength type steel and special welding process manufacturing, very strong.
Orientation: the super special steel is made, the surface has a good chromium plating wrest resistant and wear-resisting ability.
Mould pressure head: electrical and mechanical fluid synchronous drive, the same to ask board products high error is minimal.
Cloth bar: the sensor and hydraulic proportional drive technology, high speed rotating 360 degrees in cloth and produce forced centrifugal discharge material, the cloth fast evenly, to thin multi hole products especially advantageous.
Vibrator: the electro-hydraulic technology drive, the multiple source type vibration system, computer control in by hydraulic pressure drive produce vertical vibration companion, amplitude frequency adjustable, realize low frequency charging, high frequency forming working principle, for various raw materials can obtain good effect of vibration, vibration acceleration of 17.5.(vibration accelerated speed can up to 17.5)
Control system: computer control, man-machine interface, computer use Japanese mitsubishi brand, control program comprehensive 15 years practical production experience, with the international development trend, in order to meet the national conditions and compiled the design, realization without professional, just simple to operate training, powerful memory can be prepared to upgrade need.
Storage and unloading equipment: the computer control of material supply, avoid materials produced internal pressure by the external influence , which ensure material feeding uniform, the products strength error is few.
QT12-15 hydraulic automatic block molding machine theory data tables
Product type product specifications (length X width X height ) Every board number molding cycle(s) production (piece of) / 8 hours
Building-block 390*190*190mm 12pieces 15 约23040
Porous brick 240*115*90mm 30pieces 15
Standard brick 240*115*53mm 60 pieces 15 115200
(host )Machine power：40kw
Pallet specification：900*1300*40mm
(host)machine weight：14.5T
