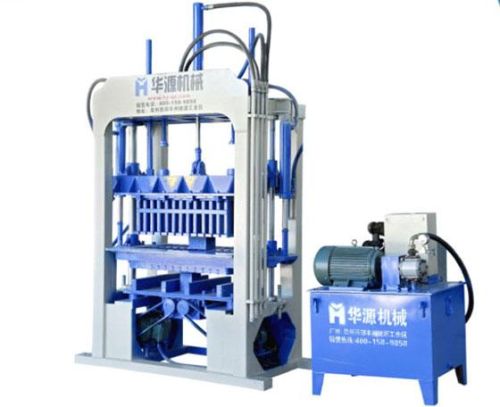

Contact SupplierQT4-40 block making machine is according to china's national conditions, combining the maiority of the new and old customers device improved design of a new machine with the production og high quality, durablity strong, high production efficiency, suitable for the production of various high strength environmental protection brick, chain blocks, color tile, parking lot grass brick, hollow brick, ets. QT4-40 making machine running automatically, using hydraulic transmission. double cloth, virbation pressure, height and compactness of the function of control, the exciting force. simple operation, easy maintenance and operation.
Main Technical Parameters
cycle time 40-45s virbation type hydraulic virbation
motor frequency 50HZ total power 15.5KW
pallet size 850*560*20MM gross weight 1500KG
rated pressure 8.5MPA machine size 800*1600*2000MM
Output
block specification cycle time production per mould production per shift(8 hours)
multi-holes block 240*115*90mm 12pcs 4200-6000pcs
standard block 240*115*51mm 26pcs 9100-13000pcs
hollow block 390*190*190mm 4pcs 1400-2000pcs
