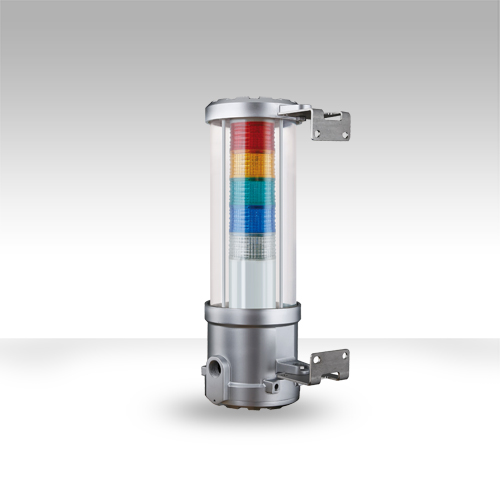

QTEXB

• explosion proof led tower lights with ex dⅱc rating can be used in explosive gas
environments
• excellent distance visibility by using a special reflector to aggregate the light from the
led filament
• ø80 led tower light mounted inside the flame proof housing
• aluminum housing provides excellent durability
• long-lasting high intensity led light source
• terminal box located inside the housing for easy power wiring
• direct mount type and wall mount type available depending on application needs.
• flashing rate: 60-80 flashesmin
• selectable between steadyflashing mode with proper wire arrangement
• sound volume : max 80db at 1m(qtexb type)
• lens color arrangement : ●r-red ●a-amber ●g-green ●b-blue ●w-white
• standard housing color : silver
• cable entry : 34″ npt
• materials : lens-tempered glass, filter lens-as, housing-al, reflector-heat resistant abs
• certificates : iecex
• protection rating : ex dⅱc t6 gb, ip66
• ambient operating temperature : -40°c ≤ tamb ≤ +60°c
