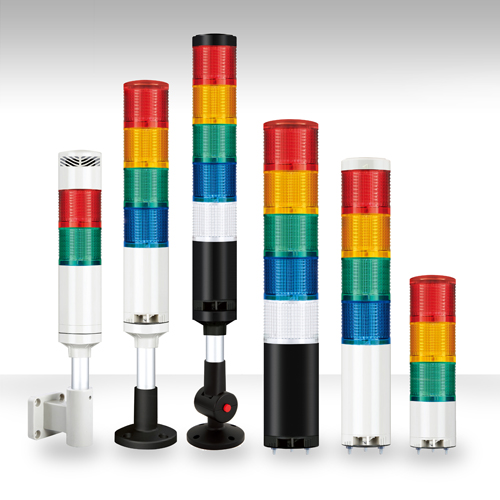

QTG Series

• modular steadyflashing type signal tower lights
• excellent visibility from a distance with the use of a special color diffusing lens
• can select from size selections of ø50mm, ø60mm, and ø70mm to fit your sophisticated
application needs
• the addition of modules and change in color arrangement can be achieved without the
use of tools by using the lock-type structure
• qtga type offers a nifty integrated lens and cover for a simple aesthetically pleasing product
• a variety of mounting bracket selections for the pole mount type to fit your location and
mounting needs
• buzzer sound output : sound volume of max 85db at 1m
• available in 2 customized options; sounds buzzer type and high volume(105db) buzzer type
• can be used with npn open collector transistor driven input, which allows direct
connection to a plc
• flashing rate : 60-80 flashesmin
• materials : lens-pc, housing-abs, pole-al
• ambient operating temperature : -30°c to +50°c
• protection rating : standard type-ip65, built-in buzzer type-ip54
• certificates : ce compliant, ul listed
• compliant with rohs directive.
