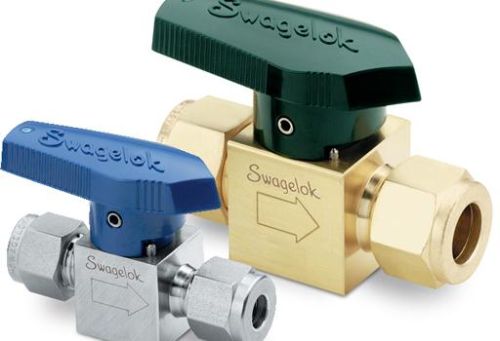

Quarter Turn Plug Valves

Quarter Turn Plug Valves
Economical, reliable alternative to ball valves
Dependable low-torque, quarter-turn operation
Simple, compact design to deliver full flow and positive shutoff
Available in a variety of materials, including stainless steel, brass, and lightweight PFA
Instrument Plug Valves
Options
Handle colors: Dark green is standard. Black, blue, and red are available.
O-Ring materials: PTFE-coated fluorocarbon FKM is standard. Kalrez®,PTFE-coated Buna N, PTFE-coated ethylene propylene, and PTFE-coated neoprene are available.
Downstream Vents: Vented plug and valve body allow pressure release to atmosphere when the valve is closed. 150 psig (10.3 bar) maximum operating pressure. Red polyetherimide handle standard
Metal handles: choose 300 series stainless steel or aluminum material.
Locking Handles: lever locks to plate to secure valve open or closed.
Panel Mounting
