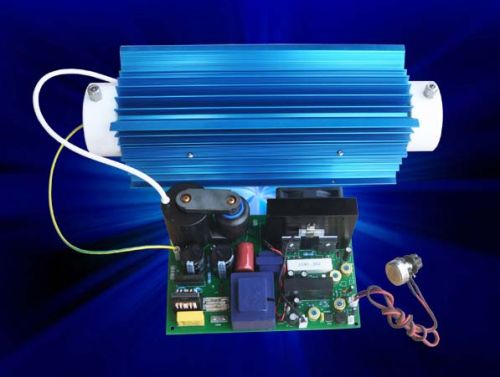

Quartz Tube Ozone Generator Accessory

We are offering 30g/h quartz tube ozone generator accessory. 1.the component of quartz tube 99.9% is silica, it has strong rigidity, resistance high heating, resistance thermal shock and low coefficient of expansion, reliable chemical character and electricity isolated character, it can equal with 97 alumina ceramic tube.
2. It adopts narrow corona gap discharge so it has high efficiency, high rate of ozone convert with low noise;
3. It adopts high voltage and frequency discharge, so it has low power consumption which should be 8-10kw. H/kg03
4. Compare to the other similar products, it has smaller dimension, shall be less1/3-1/2
5. The reaction tube operation voltage only for1/5 0f the breakdown voltage, so it has high safety coefficient.
6. The material of dielectric made from high pure silica quartz, it has high precision and flatness discharge;
7. Effectively cooling, long time operation the ozone reduced92%,oxygen dew point:-40~-60�,exit gas pressure:�0.05mpa
ozone density(mg/l) 80 65 50
ozone production(g/h) 9.6 19.5 30
air flow(l/min) 60 air source humidity:
