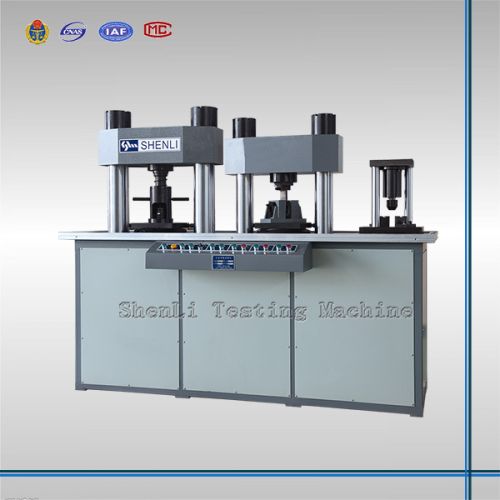

Quick Forging Testing Machine, Brand Name : ShenLi

Performance characteristics:
YQ series upset testing machine is designed according to the international standard "Metallic Materials Upset Test Methods", especially for the quality inspection of high-speed rods and wires. Through simulating the quick impact conditions of the metallic materials during the upset and pressing, the machine truthfully reflects the instances of the quickly compressed rods and wires. Under room temperature or heated-condition, exert test force in the direction of specimen axial line, quickly compress the specimen, and then inspect the metal ability of bearing upset deformation in the specified upset ratio. It also can show the metal surface disfigurements. It is widely used in the steel industry, standard specimen manufacturing industry and tools manufacturing industry for the inspection of the metallic materials upset test.
Applications:
Metal rod, wire,;
Fastener, standard parts, tools;
Applied Standards:
YQ series is designed according to the International Standard "Metallic Materials Upset Test Methods".
Specification:
Model and Specification YQ-2000
Max Upset Force(kN) 2000
Max Shearing Force(kN) 1000
Max Alignment Force(kN) Standard:150kN Optional:300KN600KN
Cold Upset Speed(mms) 50
Hot Upset Speed(mms) 70
Upset Time(s) 0.5
Specimen for Shearing(mm) 5-25
Speimen for Cold Upset(mm) 5-25
Speimen for Hot Upset(mm) 20-60
Cold Upset Ratio 12
Hot Upset Ratio 13
Dimension of Load Frame(mm) 1930*670*1900
Dimensions of Hydraulic Power Unit(mm) 800*800*1020
Dimensions of Working Platform(mm)
Power Supply 3-Phase AC 380V, 50Hz
Power(kW) 4
Weight(kg) 3500
