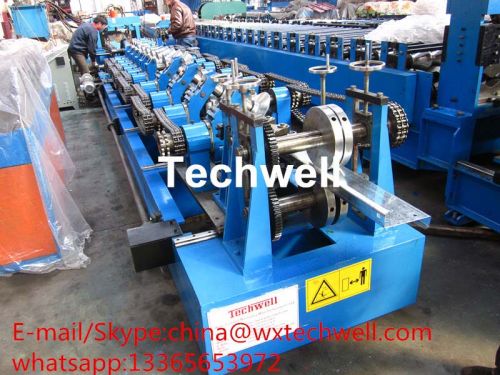

Quick Interchangeable CZ Purlin Roll Forming Machine

Quick Interchangeable CZ Purlin Roll Forming Machine for C and Z purlins
A). Main Components:
Decoiler -------------------------------------------- 1 Unit
Feeding & Leveling -------------------------------- 1 Unit
Hydraulic punching device ------------------------ 1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Main roll forming machine ------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
B). Main Specification:
Material: G.i Coil or Carbon steel
Material Thickness:1.0-3.0mm
Landscape orientation adjustment range of Hole distance : 45-500mm
Length of purlin: >3m
Forming Stations: about 16 Main rollers
Feeding Stations: 2
Main Power: 20KW
Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
Weight of machine: about 18.5 Ton
One machine can produce differenct CZ Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers.
This line main forming drive adopt reducer motor and frequency conversion control, speed control�
It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20mmin.
Applications:
Steel cz purlins, cz purlins, steel structuere cz purlin, metal cz purlins
