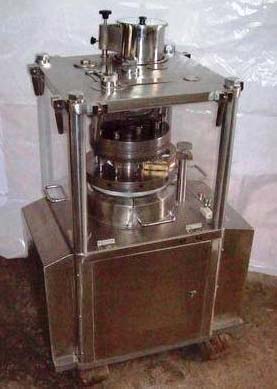

R & D Rotary Tableting Machine

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

We put at the client’s disposal, the R & D Rotary Tableting Machines that are in synonymy with highest industrial standards. These R & D Rotary Tableting Machines are configured with latest technological methods and thus, are tolerant, non-corrodible, user-friendly and energy-efficient. We proffer these Machines in varying specifications at the market-leading prices. Salient Features : Fully Computerized System PLC-MMI/HMI Control System Turret Fully Electro less Nickel Plating Frequency Drive Force Feeding System - through AC Variable

View More Details

Send Enquiry

Technical Specification

Type	R & D - 8	R & D - 10	R & D - 12 MT
No. of Station	8	10	12
Type of tooling	D	B	D,B & BB
Output tablets / hour *	2000 to 14400	2000 to 18000	2000 to 7200
Maximum Operating Pressure	6 Ton	6 Ton	6 Ton
Maximum Operating Pre -Pressure	1 Ton	1 Ton	1 Ton
Maximum tablet diameter	19 mm(23mm caplet)	16 mm	19 mm(23mm caplet)
Maximum depth of fill	20.5 mm	17.5 mm	20.5 mm
Upper punch penetration	2 to 6 mm	2 to 6 mm	2 to 6 mm
Power	2 Hp / 1440 RPM	2 Hp / 1440 RPM	2 Hp / 1440 RPM
Gross weight (kg)	400	400	400
Over all dimensions (mm)	840 x 635 x 1200 H	840 x 635 x 1200 H	840 x 635 x 200 H
