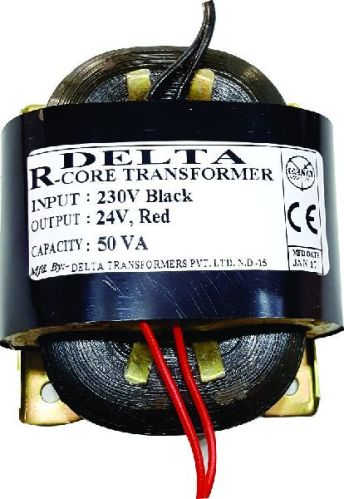

R-CORE TRANSFORMER FEATURES
A light, thin & small transformer
In comparison with EI transformer of same capacity, R-Core transformer allows designers to place transformers with minimal clearance from other components. This is simply possible due to 40% smaller design and low temperature elevation. The transformer can be positioned anywhere since leekage flux is less than 1/10 of conventional model. Many electronics designers mentioned that their equipment design become much easier and reliable with R-core transformer.
Type No. | A | B | C | D | E | T | f | VA | W(Kg.) |
R-5 | 48 | 62 | 27 | 45 | 35 | 0.5 | 4.0 | 5-8 | 0.23 |
R-10 | 74 | 60 | 50 | 45 | 32 | 1.0 | 4.0 | 8-10 | 0.4 |
R-20 | 81 | 68 | 55 | 45 | 37 | 1.0 | 4.0 | 10-25 | 0.5 |
R-30 | 96 | 74 | 70 | 60 | 41 | 1.0 | 5.0 | 25-35 | 0.7 |
R-40 | 98 | 80 | 70 | 60 | 41 | 1.0 | 5.0 | 35-45 | 0.9 |
R-50 | 100 | 86 | 75 | 65 | 47 | 1.0 | 5.0 | 45-60 | 1.0 |
R-75 | 101 | 96 | 70 | 80 | 54 | 1.0 | 5.0 | 60-95 | 1.3 |
R-80 | 123 | 90 | 90 | 70 | 50 | 1.2 | 5.0 | 75-100 | 1.4 |
R-100 | 124 | 102 | 100 | 80 | 55 | 1.2 | 5.0 | 100-130 | 1.8 |
R-160 | 139 | 110 | 100 | 85 | 63 | 1.6 | 5.0 | 130-190 | 2.6 |
R-260 | 160 | 121 | 128 | 96 | 68 | 1.6 | 5.0 | 190-270 | 3.1 |
R-320 | 163 | 128 | 135 | 95 | 70 | 1.6 | 5.0 | 270-350 | 3.8 |
R-600 | 189 | 143 | 142 | 100 | 80 | 1.6 | 8.0 | 350-700 | 6.5 |
R-1000 | 225 | 172 | 180 | 140 | 99 | 2.3 | 8.0 | 700-1000 | 10.5 |
R-30L | 121 | 65 | 95 | 50 | 39 | 1.0 | 4.0 | 25-40 | 0.9 |
R-80L | 129 | 82 | 110 | 70 | 45 | 1.0 | 5.0 | 60-75 | 1.3 |
