R20 Basic On-Off JJ Electric Actuator

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Basic On-Off Electric Actuator Model RC-20 12V : Overview - Maximum 25Nm basic on-off reversible IP67 12VDC electric quarter turn valve actuator. Manual override. External Din plug connection. Local....

View More Details

Send Enquiry

Company Information

J+J Automation UK Limited

England

View Number

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

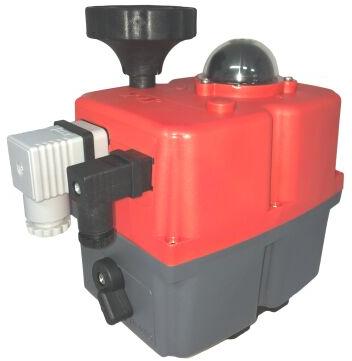

Basic On-Off Electric Actuator Model RC-20 12V :

Overview - Maximum 25Nm basic on-off reversible IP67 12VDC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses. F03, F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 25Nm. Max run and reseat torque 20Nm. Max ambient temp range -20 to +70C.
Options - Heater, 9 opr 11mm female star drive output

Basic On-Off Electric Actuator Model RC-20 110V :

Overview - Maximum 25Nm basic on-off reversible IP67 110VAC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 25Nm. Max run and reseat torque 20Nm. Max ambient temp range -20 to +70C.
Options - Heater.

Basic On-Off Electric Actuator Model RC-20 240V :

Overview - Maximum 25Nm basic on-off reversible IP67 240VC electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 25Nm. Max run and reseat torque 20Nm. Max ambient temp range -20 to +70C.
Options - Heater.

Basic On-Off Electric Actuator Model RC-20 24V :

Overview - Maximum 25Nm basic on-off reversible IP67 24V electric quarter turn valve actuator. Manual override. External Din plug connection. Local dome style visual position indicator.Internal fuses.F03, F04 & F05 x 14mm female star mounting.
Function - Power open, power close. Stays put on external power failure. Designed to have power on at all times.
Sizing Criteria - Max break torque 25Nm. Max run and reseat torque 20Nm. Max ambient temp range -20 to +70C.
Options - Heater.
