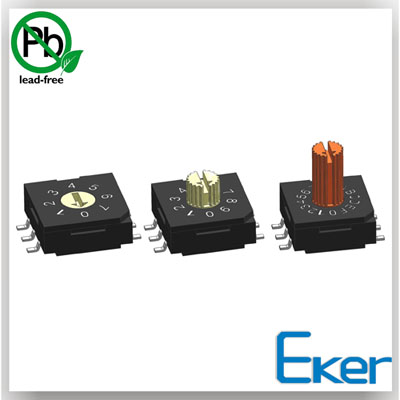

-40℃--+85℃ R93-s Smt Rotary Dip Switch, Brand Name : Eker

r93-s series Rotary Switch:
rotary switch soldering
hand soldering:soldering iron 30w at under 350°c/3sec.max.or at 270°c/5sec.max.
reflow soldering:280°cwithin 5 sec.in-line or batch system
wave soldering:270°c /5 sec.max
keep actuator in "off" positon during soldering and cleaning process
rotary switch mechanical
operation force: 1000g max.
operation temp: -40â°c to +85â°c
-40â°c to +125â°c(reflow slodering)
storage temp: -40 â°c to +85â°c
mechanical life: 10,000steps
rotary switch electrical
electrical life: 20,000 steps
non-switching rating: 100ma, 50vdc.
switching rating: 20ma, 5vdc.
contact resistance: 50max. at initial.
insulation resistance: (at 500vdc)1000 min after life test
dielectric strength: 250vac/1minute
many different kinds of rotary switch, pls contact us for more detail information.
