Contact SupplierCustom Engineering is Endee's main strength Endee maintains in-house capability to both design and manufacture a wide variety of sample systems tailored to meet out customers' process requirements. We design sample-conditioning systems for our complete line of process analyzers .

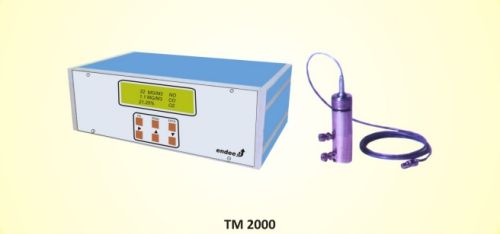

The trace oxygen analyser can be ordered as a standard unit or as part of a larger cost effective integerated analytical system. The analyser can also be supplied designed as a “split architecture” instrument, meaning that a general purpose, panel mounted Control Unit for non-hazardous areas controls a remote Analysis Unit(Transmitter) that can operate in hazardous areas.
Designed to make the task of trace oxygen analysis easier, faster and more precise than ever before
Indication | 16x2 Alpha numeric Digital LCD Continuous |
---|---|
Principle of Analysis | Fast Recovery Self Powered Diffusion Limited sealed Electrochemical Sensor |
Ranges | 0 - 10, 0 - 100, 0 - 1000 ppm |
Accuracy | ±2% of full scale (±1ppm for 0 - 10ppm range) at a constant temperature |
Diagnostics | Comprehensive self testing function |
Digital Interface | RS-232C |
Response Time | 90% in 5 to 10 seconds 90% in 60 seconds (0 - 10 ppm range) |
Reproducibility | ±1% at a constant temperature |
Sensitivity | 0.5% of FS |
Alarm Setting | Hi & Very High Adjustable over full range |
Wetted Parts | 316 Stainless Steel / Teflon |
Relative Humidity | 0 - 99% RH Non-condensing |
Housing | Drawn Aluminium |
Recommended Sample | 0.1 to 5 Litre / Min |
0 Operating Temperature | 0 to 50 C |
Power | 110 or 220 V (user specified), 50/60 Hz |
Analog Output | 4 - 20 mA isolated output 600 ohms |
Sample inlet / outlet | 1/4” OD Flare fittings |
Mounting | Panel |
Mounting Dimension | 390 x 132 x 230 mm |
