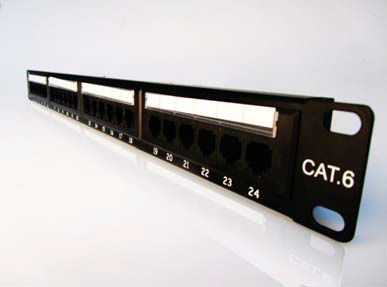

Rack Mount Patch Panels

Superiortec’s Category 6 patch panels are designed to exceed industry expectations and surpass the governing standards.
Developed to offer guaranteed bandwidth and true performance, Superiortec’s Cat 6 patch panels are assured to meet the
standard when verified.

APPLICATIONS

Access network
Fast Ethernet 100BASE-TX
Gigabit Ethernet 1000BASE-T
Broadband video
Voice
All applications developed for operation over CAT6 or class E cabling

SPECIFICATIONS

CAT6-component compliant
Backward compatible
T568A/B wiring colors for easy installation
Angle: 90 Degree
Termination: 110 IDC

STANDARDS

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

PHYSICAL CHARACTERISTICS

Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04”) thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018”) Diameter Phosphor bronze with 3 u” Gold plating on contact area

ORDERING INFORMATION

PP24C6R Patch panel 24-RJ45, Cat6 Unshielded, 568A/B wiring, 1U w/strain-relief bar
PP48C6R Patch panel 48-RJ45, Cat6 Unshielded, 568A/B wiring, 2U w/strain-relief bar
