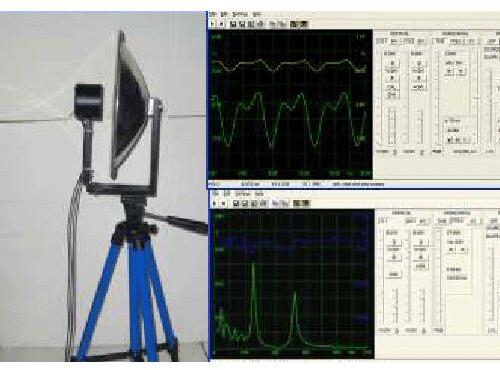

Radar Trainer (VPL-RADAR)

Get Latest Price

Operating Voltage12V, Antenna
Power Supply230 V ±10%, 50 Hz.
Coverage0.5m~100m (Varies depending on use environment).
DisplayPeak to Peak Voltage.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VPL Infotech & Consultants

Preet Vihar, Delhi

4.6/5

(28)

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Operating Voltage12V, Antenna
Power Supply230 V ±10%, 50 Hz.
Coverage0.5m~100m (Varies depending on use environment).
OscilloscopeReal time/Storage mode with FFT analysis.
Operating SystemWindows 98SE, Windows ME, Windows 2000, Windows XP.
Transmitter Frequency10 GHz.
AlarmOnboard detected signal indication.
DisplayPeak to Peak Voltage.
Time domain windowDisplay the Doppler Frequency in Time domain.
Output Power10 to 15 mW, +10dB typical.
Current consumption80mA standard.

Radar Trainer has been designed to study completely & demonstrate about the working and application of RADAR system. It is a self sufficient and complete setup of hardware and software to demonstrate Radar concepts and its applications. It is a great tool for Electronic & Telecommunication Lab/Department of any technical

General Details

Complete hardware and software setup to demonstrate Radar concepts.
Signals study on Software / Oscilloscope with the help of test points given on trainer.
Object counter provided on trainer.
Real time fan RPM measurements and vibrations measurements with the help of tuning forks.
Tripod stand provided for height and level matching.
LED Indication for Doppler Echo Signal.
On board alarm for detected signals.
