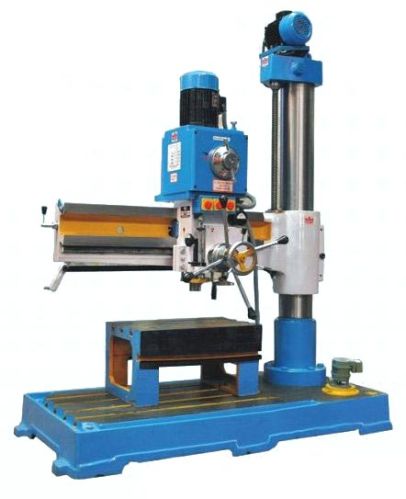

Radial Drill Machines

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Designed using the cutting-edge technology- these Radial Drill Machines are manufactured in compliance with the set industrial standards. We are among the trustworthy Manufacturers, Suppliers and Exporters of Radial Drill Machines, based in Mumbai (Maharashtra). These Radial Drill Machines are appreciated for making accurate drill holes. Our range of Radial Drill Machines comprises drill holes (40 mm, VRD-38.A, VRD-38.C and50 mm). Why Our Radial Drill Machines? Smooth performanceEase-of-useLow maintenance costCompetitive rates

View More Details

Send Enquiry

Specifications

Neco 40 MM	900	1100
Drilling Capacity	40MM	40MM
Distance from Spindle to Coloumn	400 to 950	320 to 1100
Diameter of Column	171	171
Spindle Taper	MT-4	MT-4
Spindle Travel	180	180
Spindle Speed Range	79-1400 RPM	79-1400 RPM
Spindle Speed Serfes	8	8
Range of Spindle Feeds	0.5/0.8	0.5/0.8
Distance From Spindle to Working Suface Base	280-970MM	350-1000MM
Dimesion of Work table	380 x 290 x 290	590 x 380 x 300
Dimesion of base	1200 x 760 x 170	1500 x 740 x 160
Overall size	1350 x 900 x 2150	1700 x 900 x 2150
Power of main motor	2. H.P.	2. H.P.
Gross Weight Net Weight	1200/1000	1300/1100
Packing Dimesion	1550 x 1100 x 2350	1900 x 1100 x 2350
