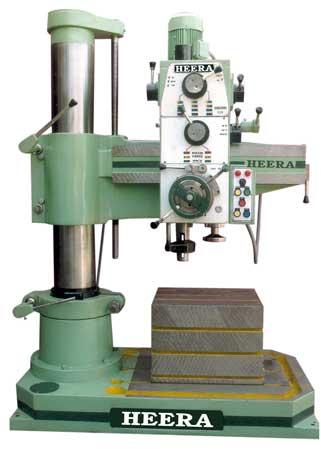

Are you in search of high performing Radial Drilling Machine? We assure to serve you in the best possible way. We present a qualitative range of Radial Arm Drilling Machine that is utilized in large number of industrial applications. We manufacture Radial Arm Drilling Machine that is highly appreciated by our customers for their excellent performance and high durability. In addition to this, we provide availability of drilling machine in different specifications as per the requirements of clients. We are counted as one of the foremost Drilling Machine Exporters and leading Suppliers from India. Radial Drilling Machine can be obtained at affordable prices.
| Drilling capacity in solid mild steel | 40mm | 40 mm | 50mm | 50mm | 50mm | 65mm | 75mm | |
|---|---|---|---|---|---|---|---|---|
| Drilling capacity in cast iron | 50mm | 50mm | 60mm | 60mm | 60mm | 75mm | 85mm | |
| Dia of Column | A | 230 | 255 | 255 | 305 | 305 | 355 | 405 |
| Drilling radius minimum | B | 375 | 375 | 450 | 450 | 450 | 650 | 650 |
| Drilling radus maximum | C | 950 | 1050 | 1100 | 1200 | 1375 | 1600 | 2000 |
| Machine height from floor | D | 2400 | 2400 | 2450 | 2650 | 2650 | 3000 | 3300 |
| Distance From Spindle nose to the top of the base plate in downwards direction | E | 50 | 75 | 75 | 80 | 100 | 100 | 100 |
| Distance From Spindle nose to the top of the base plate in upwards direction | F | 1000 | 1050 | 1050 | 1220 | 1250 | 1550 | 1700 |
| Drilling depth | G | 200 | 200 | 225 | 225 | 225 | 325 | 325 |
| Working surface of base plate | 890x850 | 900x600 | 975x655 | 1450x850 | 1740x950 | |||
| Dimension of the base plate | RxSxT | 1420x750x170 | 1570x750x170 | 1625x830x180 | 1800x890x200 | 1950x890x200 | 2350x1015x210 | 2650x1120x225 |
| Effective area of Box table | LxKxM | 350 x 310 x 250 | 480 x 480 x 330 | 600 x 480 x 480 | ||||
| No. of speeds and ranges | 40-800 (9 steps) | 40-800 (9 steps) | 25-800 (12 steps) | 20-800 (12 steps) | ||||
| No. of Feeds and ranges | 0.07-0.40 (3 steps) | 0.07-0.70 (4 steps) | 0.10-1.25 (6 Steps) | |||||
| Taper Spindle nose socket | M.T.4. | M.T.4. | M.T.5. | M.T.5. | M.T.5. | M.T.6 | M.T.6 | |
| Main Motor | 2 H.P. | 2 H.P. | 3.H.P. | 3.H.P. | 5.H.P. | 5.H.P. | 7.5. H.P. | |
| Elevation motor | 1 H.P. | 1 H.P. | 1 H.P. | 2 H.P. | 2 H.P. | 3 H.P. | 5 H.P. | |
| Total Weight of Machine (Approx) | 1700 kg | 2000kg. | 2200kg. | 3000kg. | 3200kg. | 5000 kg. | 6500kg |
