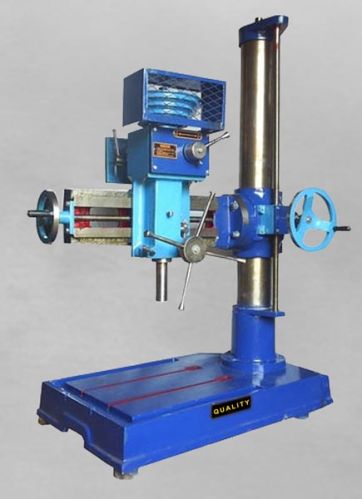

Radial Drilling Machine, Voltage : 220V

₹ 80,000 - ₹ 9 Lakh / Piece

Country of Origin220V
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The Radial Drilling Machine is manufactured from superior quality of material to ensure durability at its user end. The Heavy Duty Radial Drilling Machine is highly demanded by our clients due to its outstanding performance in drilling applications and durability. The Radial Drilling Machine is designed by highly skilled and creative workforce that holds rich-industry expertise. The Radial Drilling Machine is specially designed to suit the latest trends of the market. Attributes ReliableDurableCost effectiveExcellent functioning

Technical Specifications

Specification		Radial Drill Machine QRD - 25	Radial Drill Machine QRD - 32	Radial Drill Machine QRD - 40	Radial Drill Machine QRD - 50	Radial Drill Machine QRD - 65	Radial Drill Machine QRD - 75
Drill Head
Drilling capacity in Steel/casting		25/32	32/40	40/50	50/60	65/75	75/85
Drilling Depth		125	150	180	225	325	355
Taper Spindle Nose Socket		MT-3	MT-3	MT-4	MT-5	MT-5	MT-6
Spindle speed/range		8	8	6(55-665)	9(45-695)	12(18-810)	12(18-810)
Spindle feed/range		1(0.1 - 0.2)	1(0.1 - 0.2)	1(0.1 - 0.2)	3(0.1 - 0.2)	6(0.125 - 1.25)	6(0.125 - 1.25)
Drill Power KW		1	1	1.5	2.2	3.7	5.5
Capacity
Drilling Radius	Max.	500	650	1050	1100	1700	1900
	Min	175	200	375	450	500	500
Drill head traverse		300	400	675	650	1200	1300
Distance Base Plate to Spindle	Max.	550	680	1000	1300	1500	1750
	Min	125	150	255	255	300	400
Diameter of column		140	175	255	310	355	405
Working surface of base plate				900 x 680	920 x 830	1500 x 1020	1850 x 1160
Dimensions of Base Plate
LengthWidthHeight				1480x700x200	1585x850x200	2265x1040x225	2650x1180x225
Arm Elevator Motor KW				0.75	1.5	2.2	3.7
Standard Box Table				400x350x350	550x420x420	600x500x500	600x500x500
